CNC Gantry Milling Machines by BZT

Q: What is the difference between the BZT series?

BZT offers 17 series for different requirements: The PF, PFL and PFI are compact entry-level models for hobbyists and semi-professionals. PFE, PFK, PFJ, PFU and PFA cover the professional all-round range. PFX, PFH, PFG-S, PFB, PFU-S and PFU-S-2 are industrial machines for the highest requirements. Special models such as PFR (large parts), PFS (profiles) and PS (horizontal milling machine) round off the range.

Over 120 variants across 17 series – Made in Germany. Find the machine that fits your work.

17 Series

71+ Machines

4.100+ Sold

30+ Years of Experience

Machinable Materials:

WoodPlasticsAluminiumNon-Ferrous MetalsAcrylic GlassFoamPrecious MetalsSteel*

*with PFH, PFG-S and PFX

Learn more about our industries →

Find your machine in 30 seconds Use the machine finder or get personal advice from our experts.

Find my machine +49 5202 99306-80

Machine finder

Which CNC router fits your needs?

Answer three short questions — we'll narrow down the right BZT series for you. Start finder

1What material do you mainly want to machine?

2How large are your workpieces?

3What is your main use case?

Have a special application?

For profiles, oversized parts or rail machining we build dedicated special-purpose machines.

PFS Series Machine long profiles precisely View series →

PFR Series Custom-built large gantry milling machine for large-part production View series →

PS Series Rail end machining in integral design View series →

With over 30 years of experience and more than 4.100 machines built, we develop the right solution for almost any task. Discuss your project →

All BZT series at a glance

From compact entry-level to industrial large-format portal milling machines.

Data sheets

Series catalogs to download

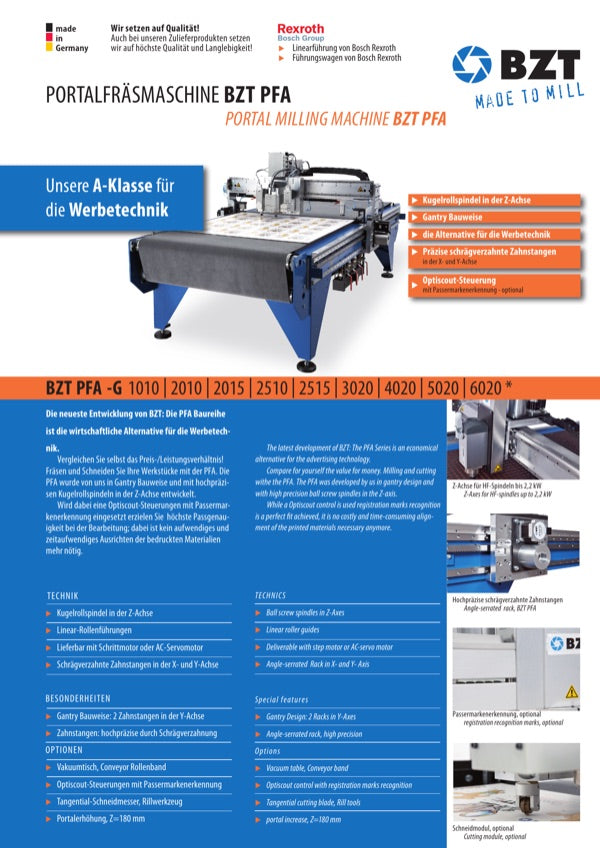

Data sheet PFA — PFA Series Trade & business

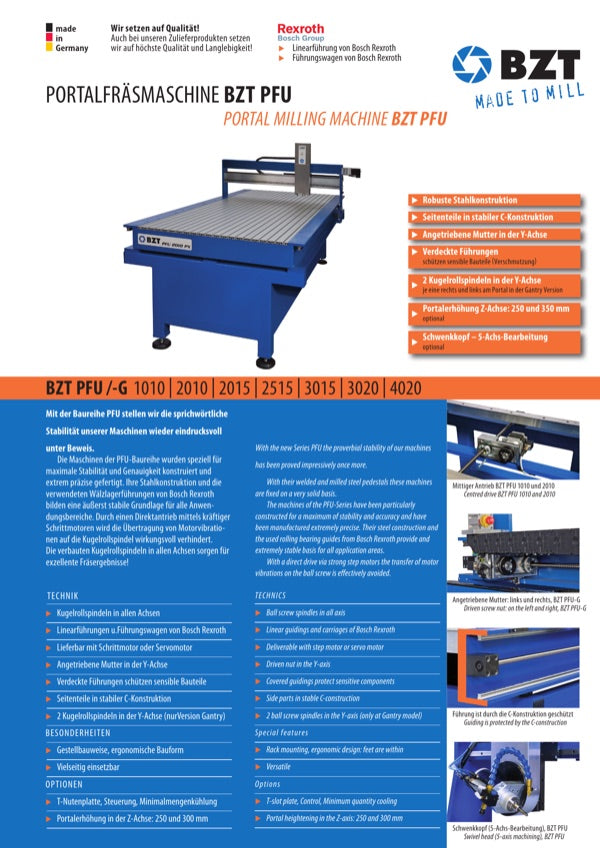

Data sheet PFU — PFU Series Trade & business

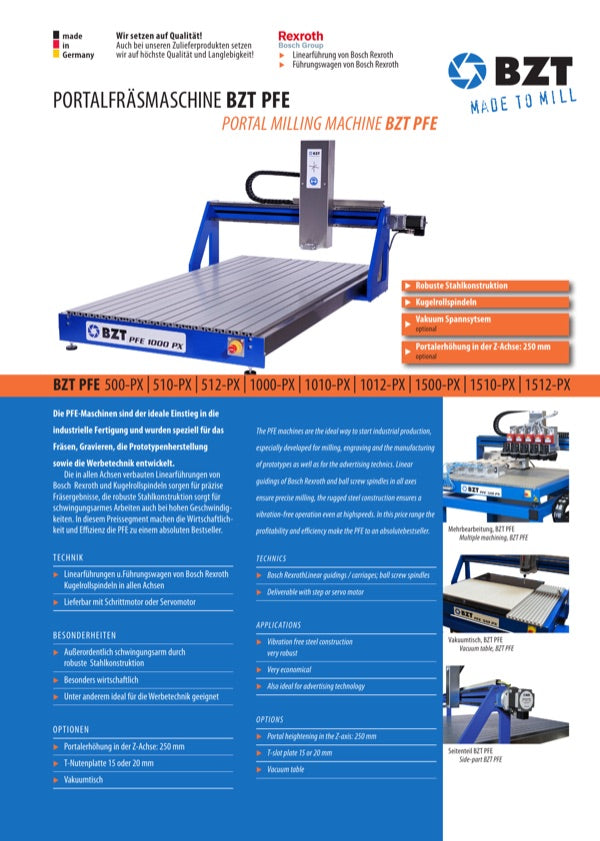

Data sheet PFE — PFE Series Trade & business

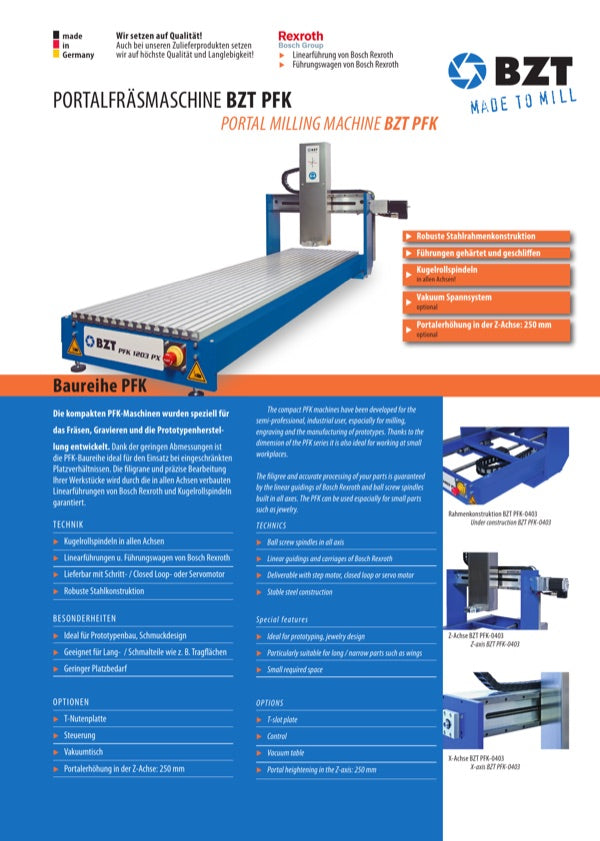

Data sheet PFK — PFK Series Trade & business

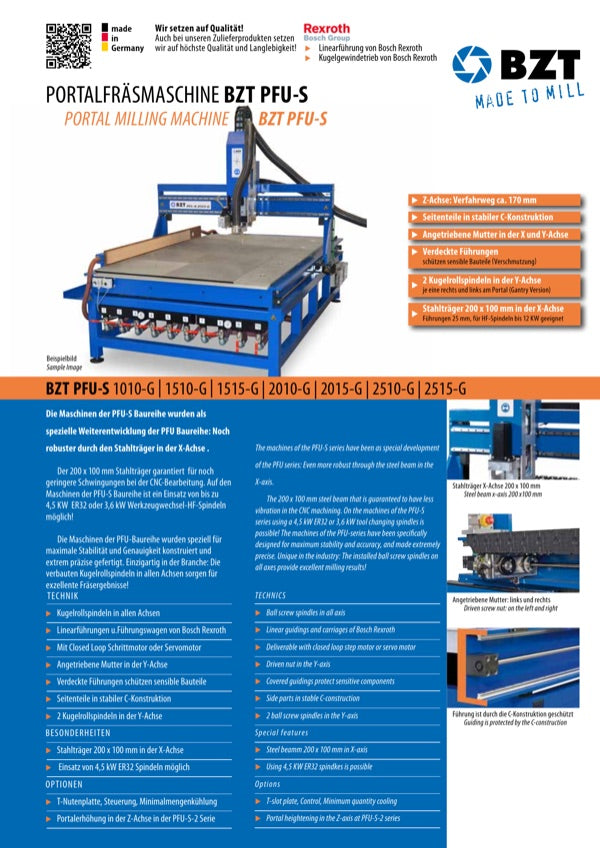

Data sheet PFU-S — PFU-S Series Industrial

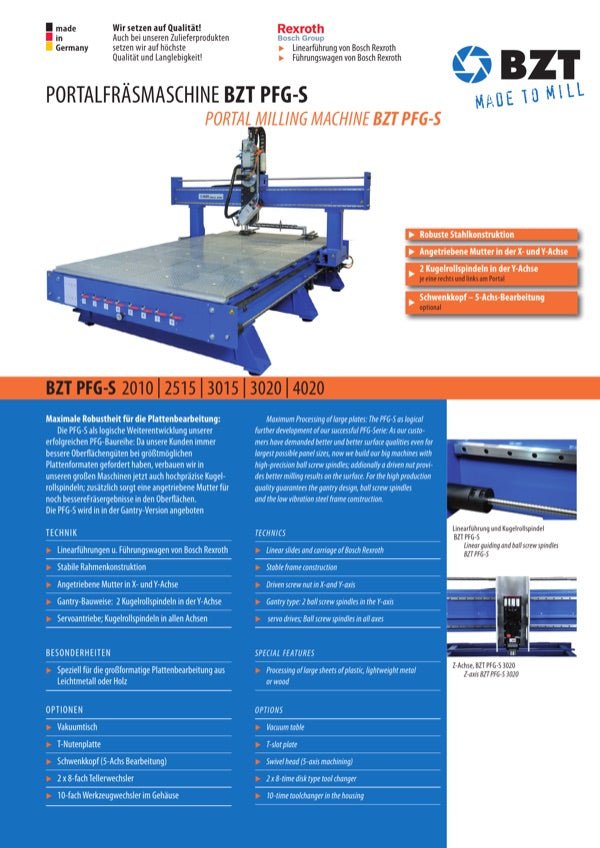

Data sheet PFG-S — PFG-S Series Industrial

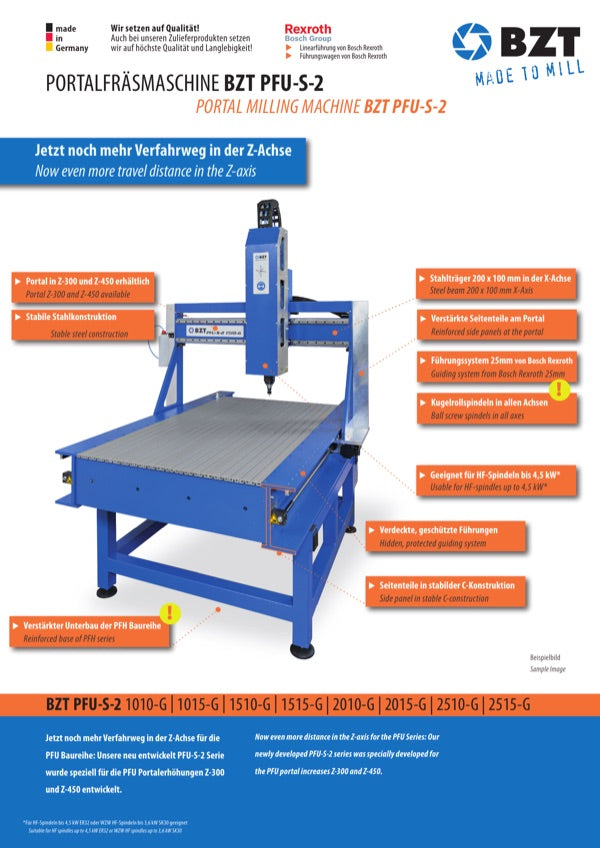

Data sheet PFU-S-2 — PFU-S-2 Series Industrial

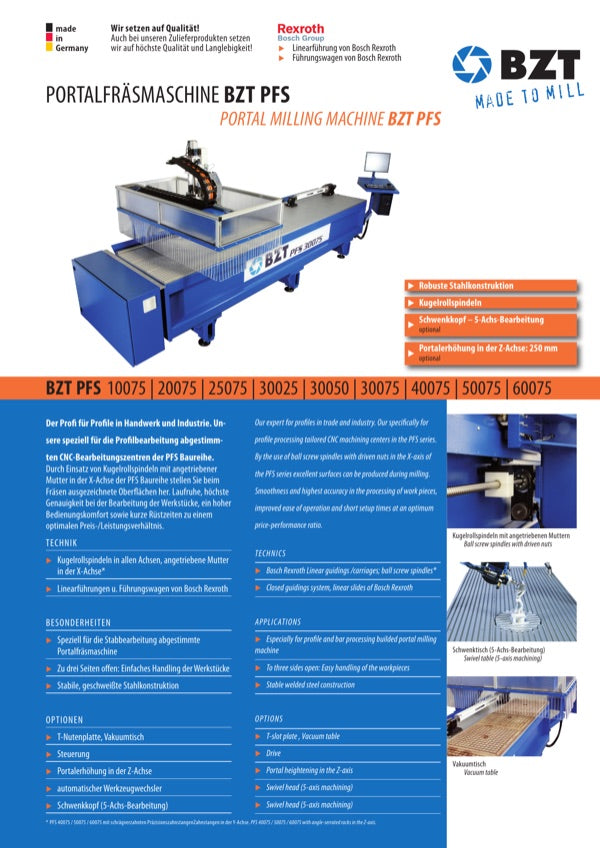

Data sheet PFS — PFS Series Special solution

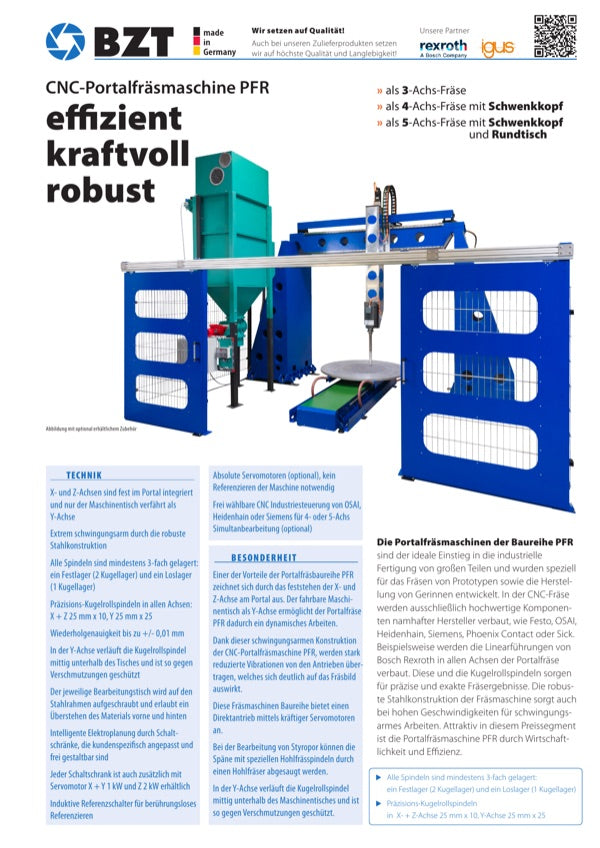

Data sheet PFR — PFR Series Special solution

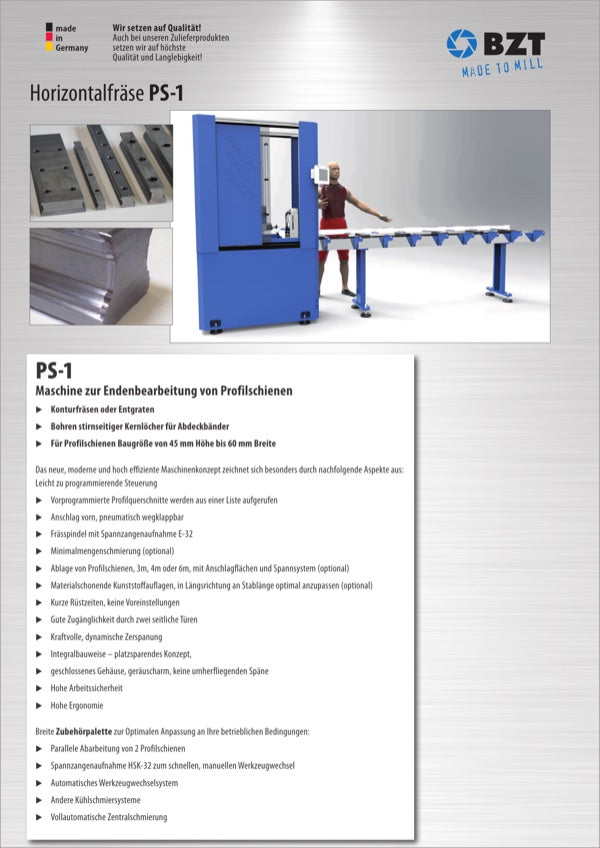

Data sheet PS — PS Series Special solution

CNC Portal Milling Machines Compared

All series with their key technical data – taken straight from the current datasheets.

Series	Class	Travel X	Travel Y	Travel Z	Materials	Special features

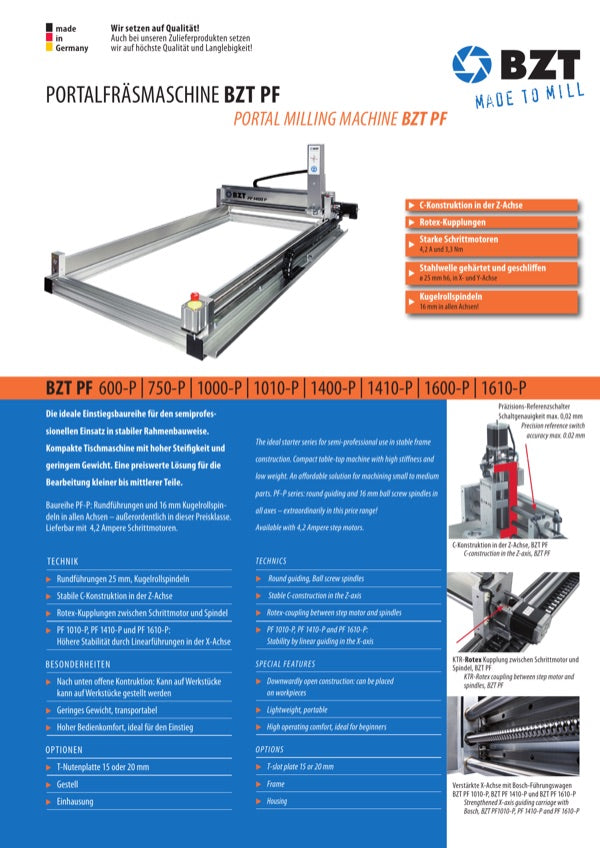

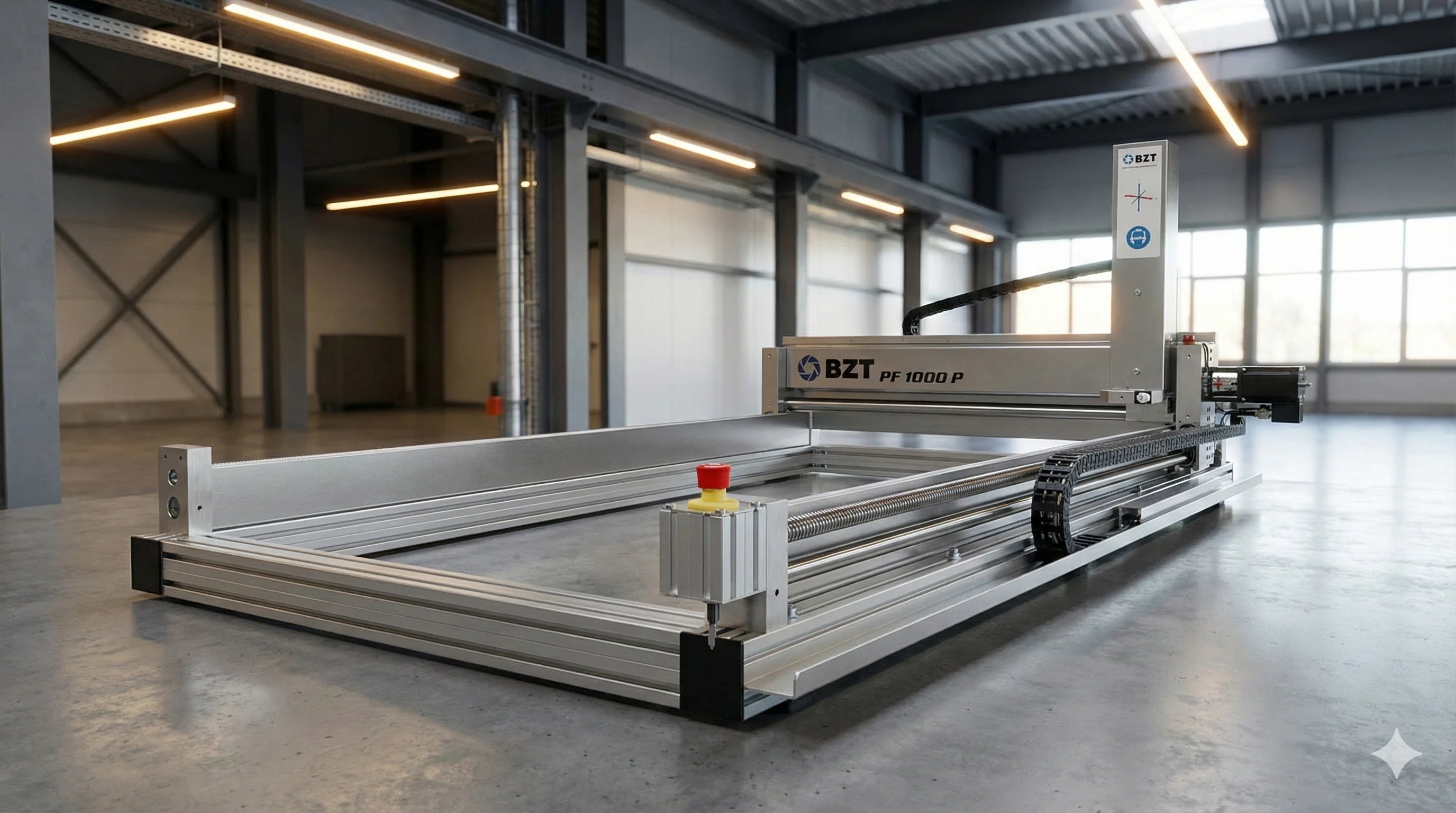

PF Series	Entry level	290 – 905 mm	490 – 1495 mm	110 mm	Wood, Plastics, Acrylic, Foam, Aluminium	Versatile entry-level gantry milling machine, light and portable from 31 kg.	Details

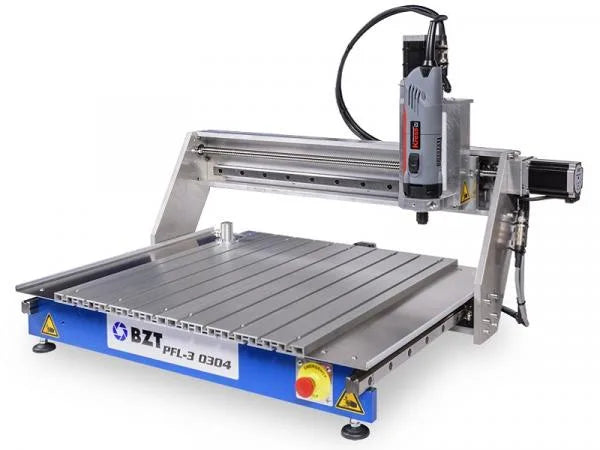

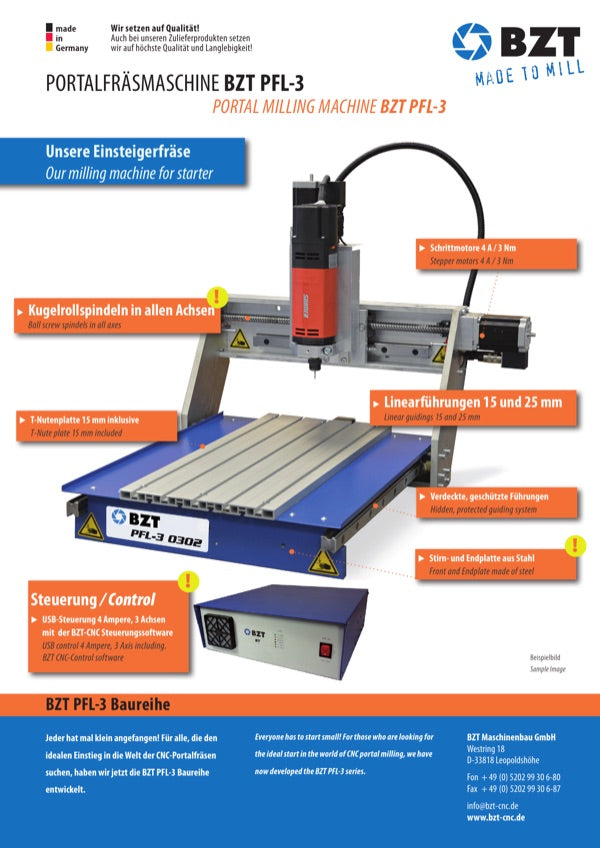

PFL Series	Entry level	260 – 520 mm	380 – 620 mm	100 mm	Wood, Plastics, Acrylic, Foam	Compact, precise entry-level milling machine with sturdy steel frame.	Details

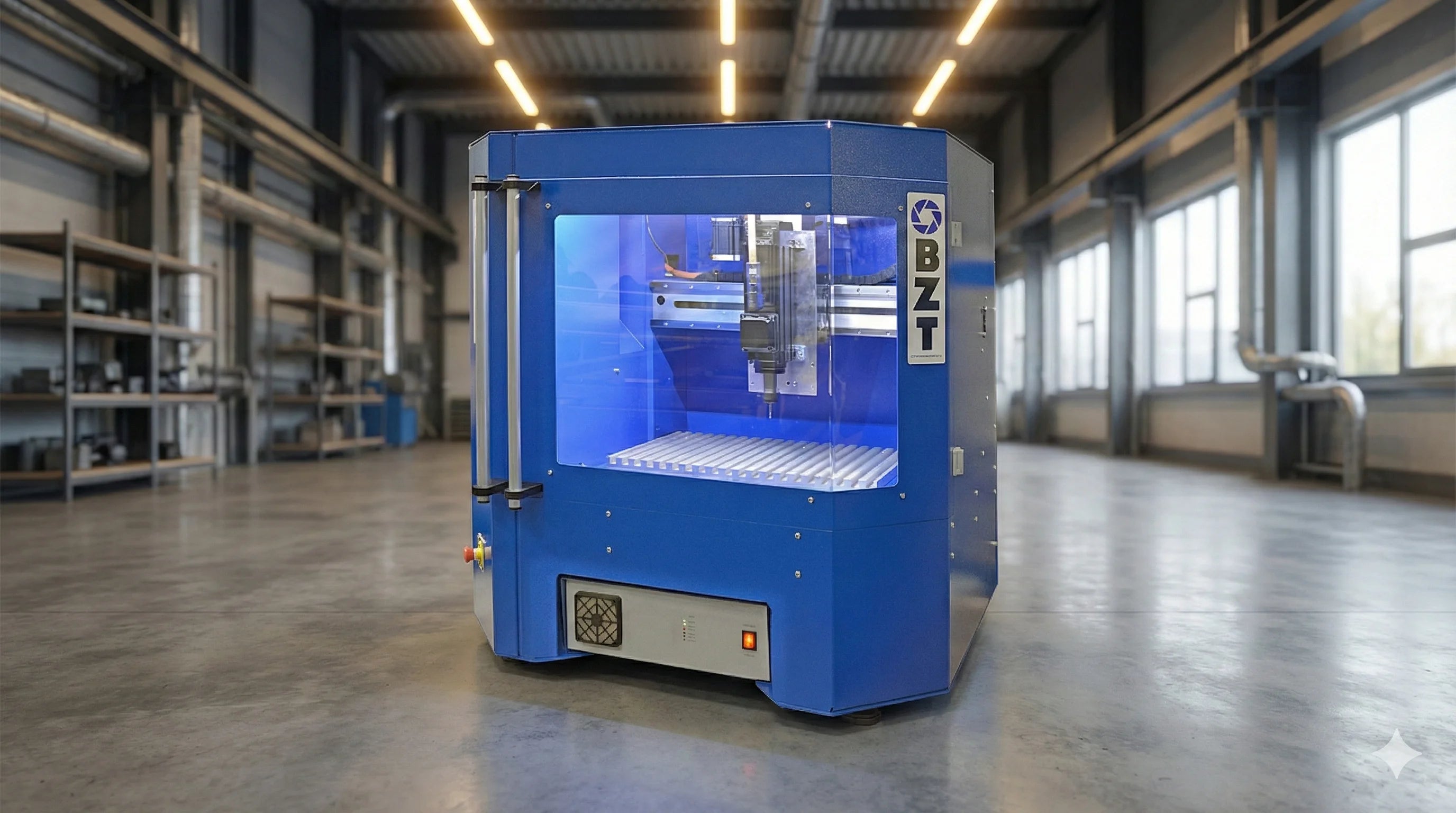

PFI Series	Entry level	515 mm	300 mm	135 mm	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Precious metals	Compact benchtop milling machine for education, model making and jewellery	Details

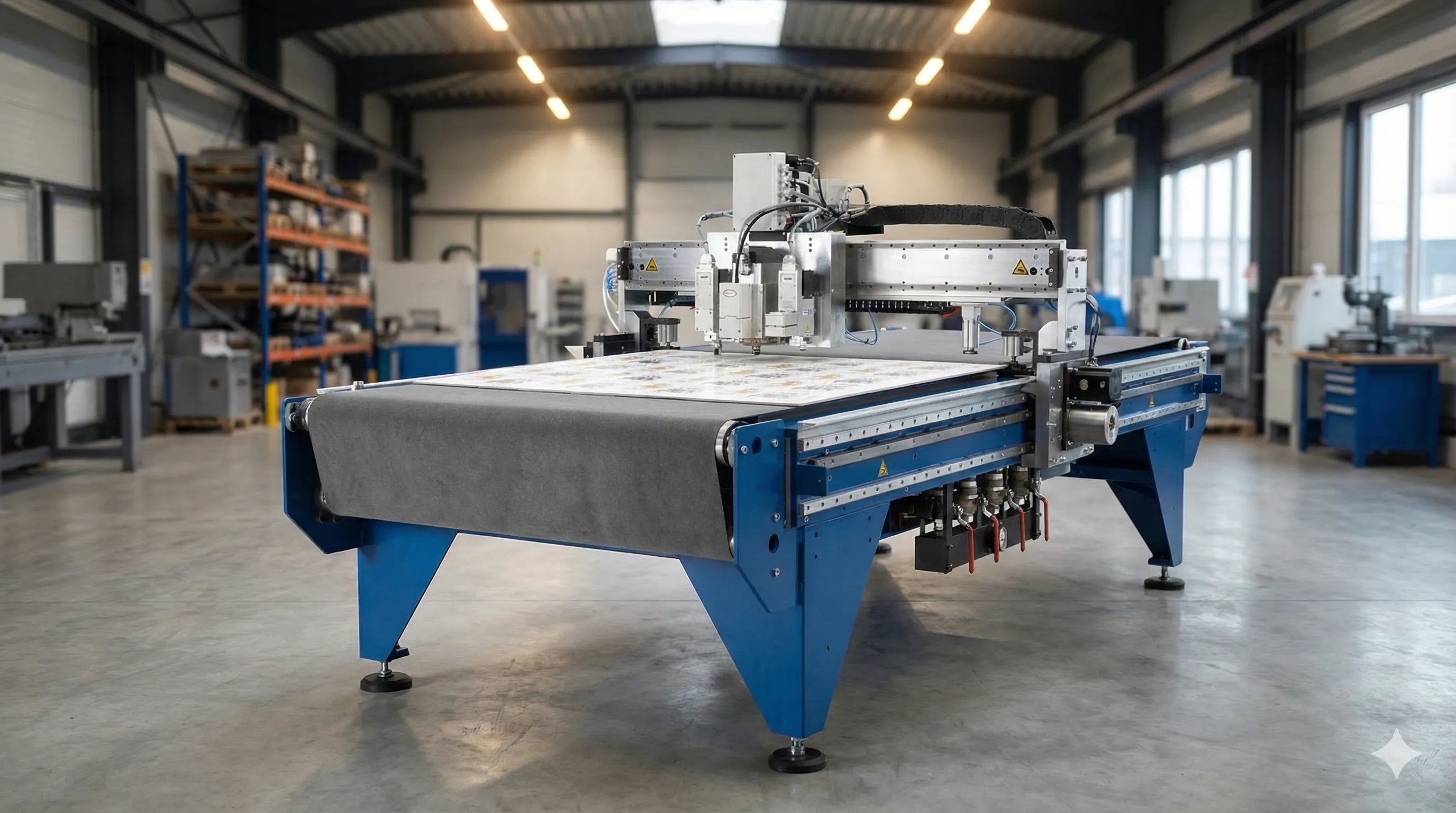

PFA Series	Trade & business	1050 – 2050 mm	1050 – 6050 mm	135 mm	Wood, Plastics, Acrylic, Foam, Aluminium, Composites	Large-format gantry milling machine for signage and panel machining up to 6 m in length	Details

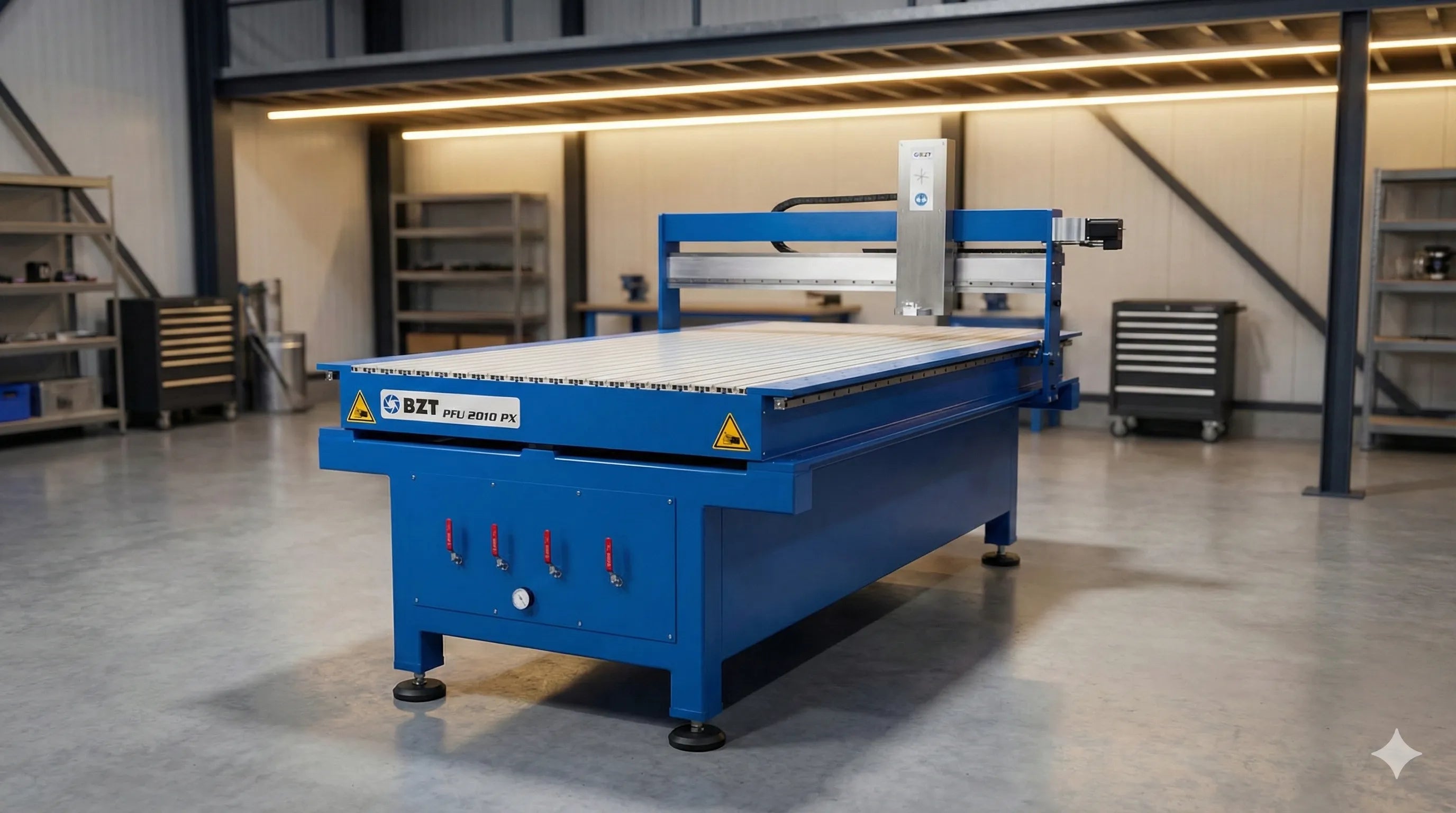

PFU Series	Trade & business	1020–2020 mm	970–4010 mm	135 mm (180 mm for 3020/4020)	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Composites	The universal gantry milling machine with large travels for craft and trade.	Details

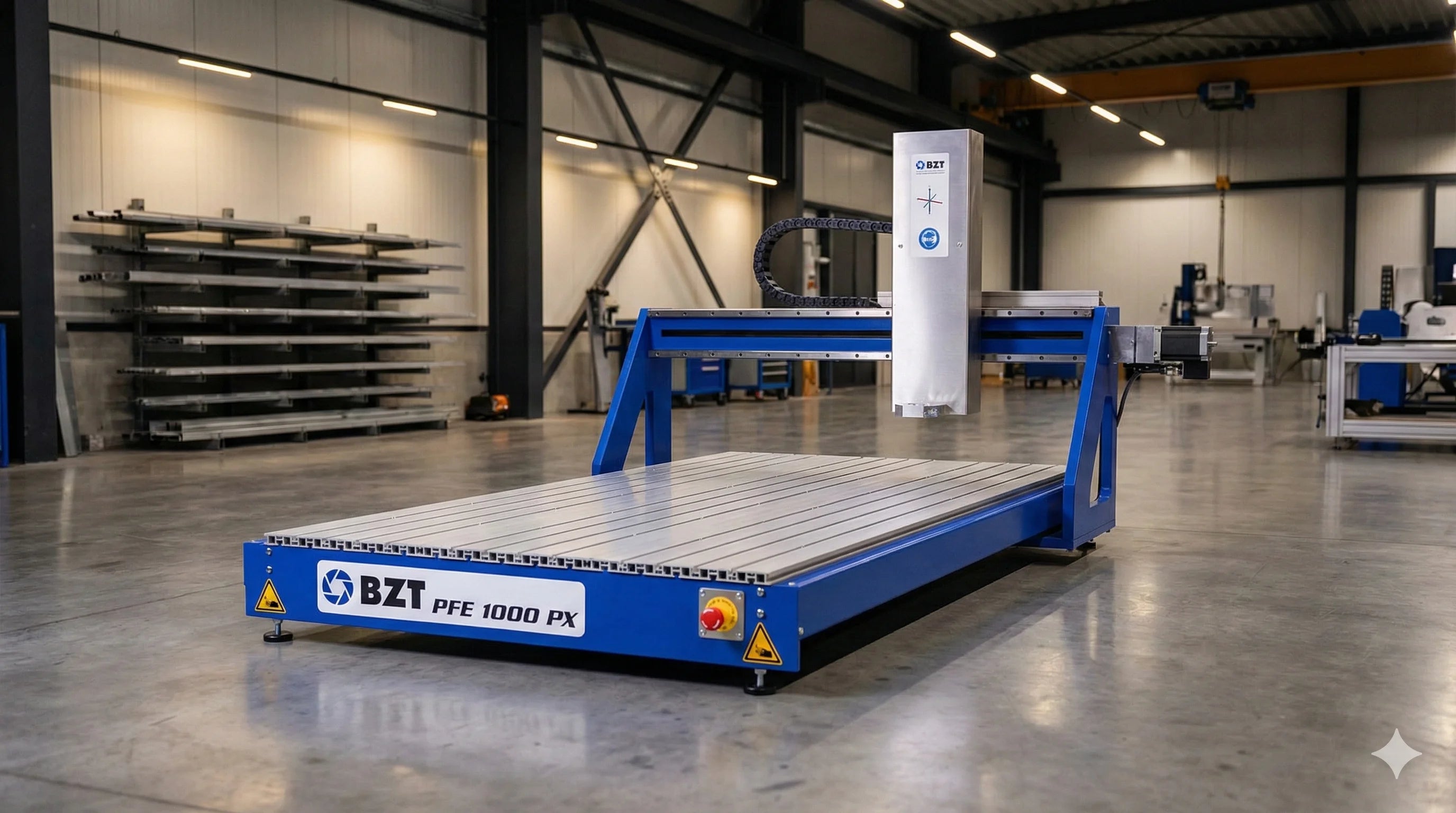

PFE Series	Trade & business	720 – 1205 mm	525 – 1550 mm	135 mm (250 mm with gantry riser)	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Composites	Professional CNC with Bosch Rexroth guides for wood, plastic and aluminium.	Details

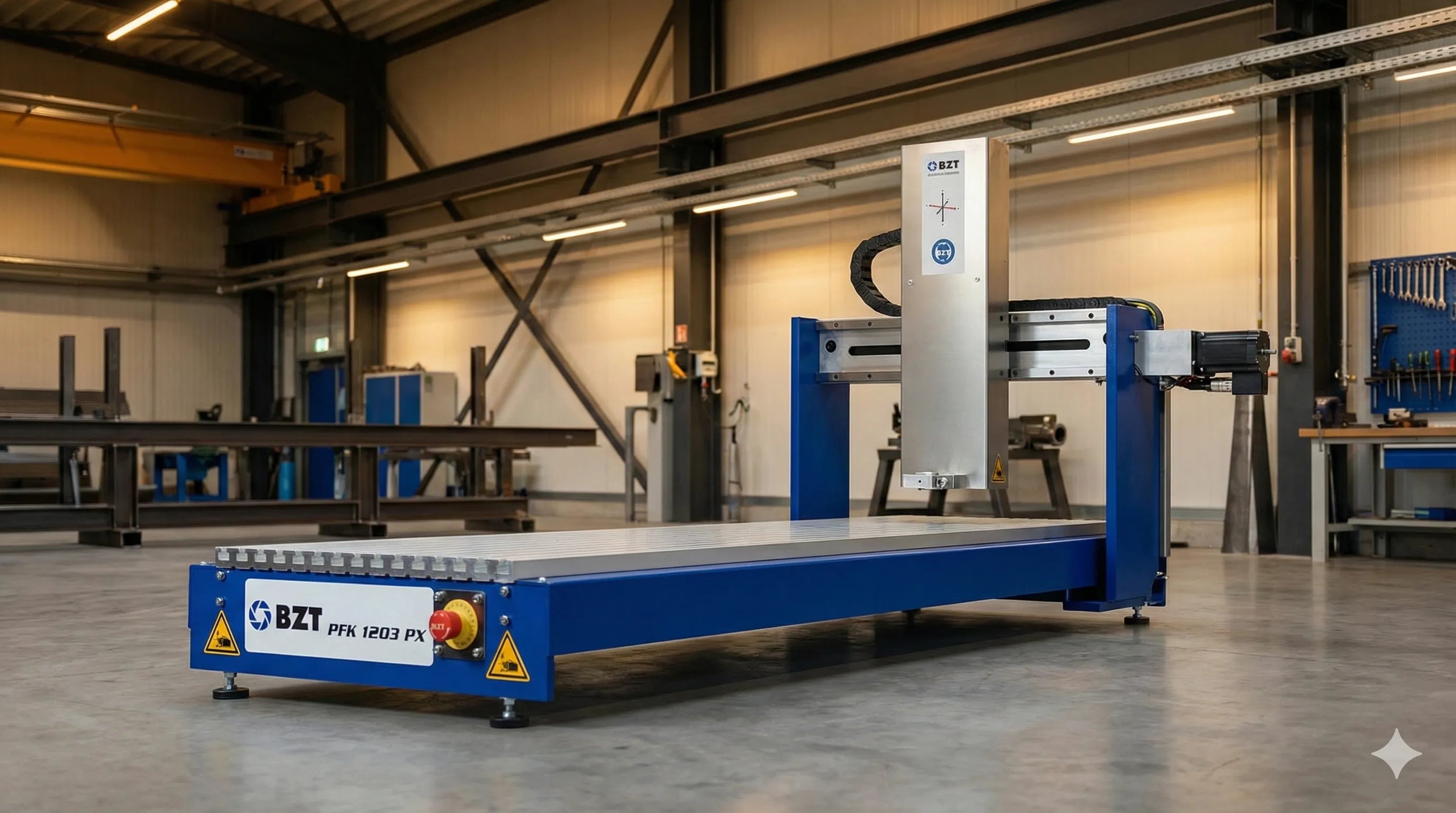

PFK Series	Trade & business	340 – 750 mm	260 – 1680 mm	135 mm	Wood, Plastics, Aluminium, Non-ferrous metals, Precious metals, Acrylic	Stable compact CNC for jewellery and fine workpieces in a small space.	Details

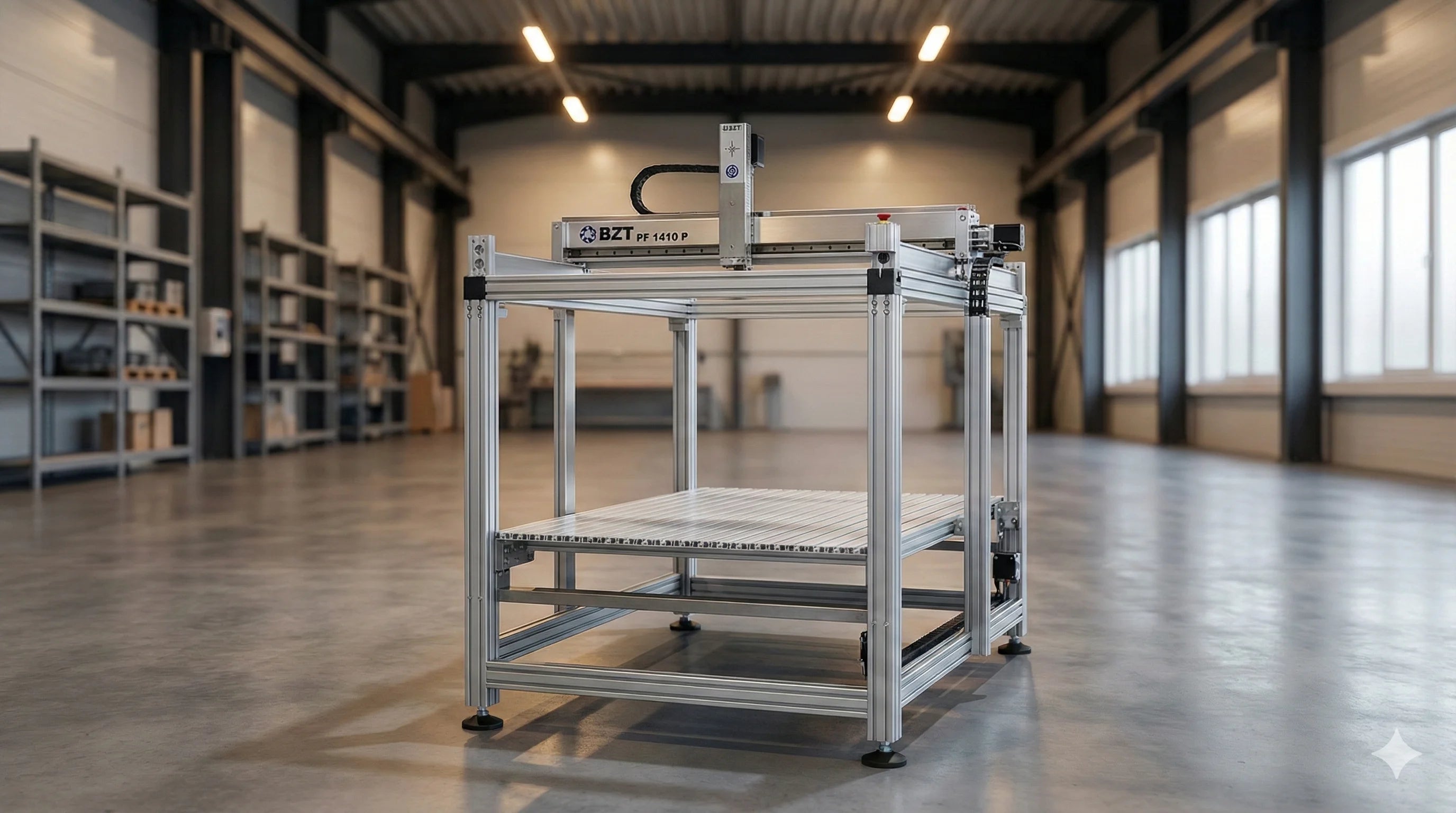

PFJ Series	Trade & business	up to 905 mm	up to 890 mm	—	Acrylic, Plastics, Foam, Wood, Aluminium, Precious metals	Compact gantry milling machine with movable clamping table for flexible series production.	Details

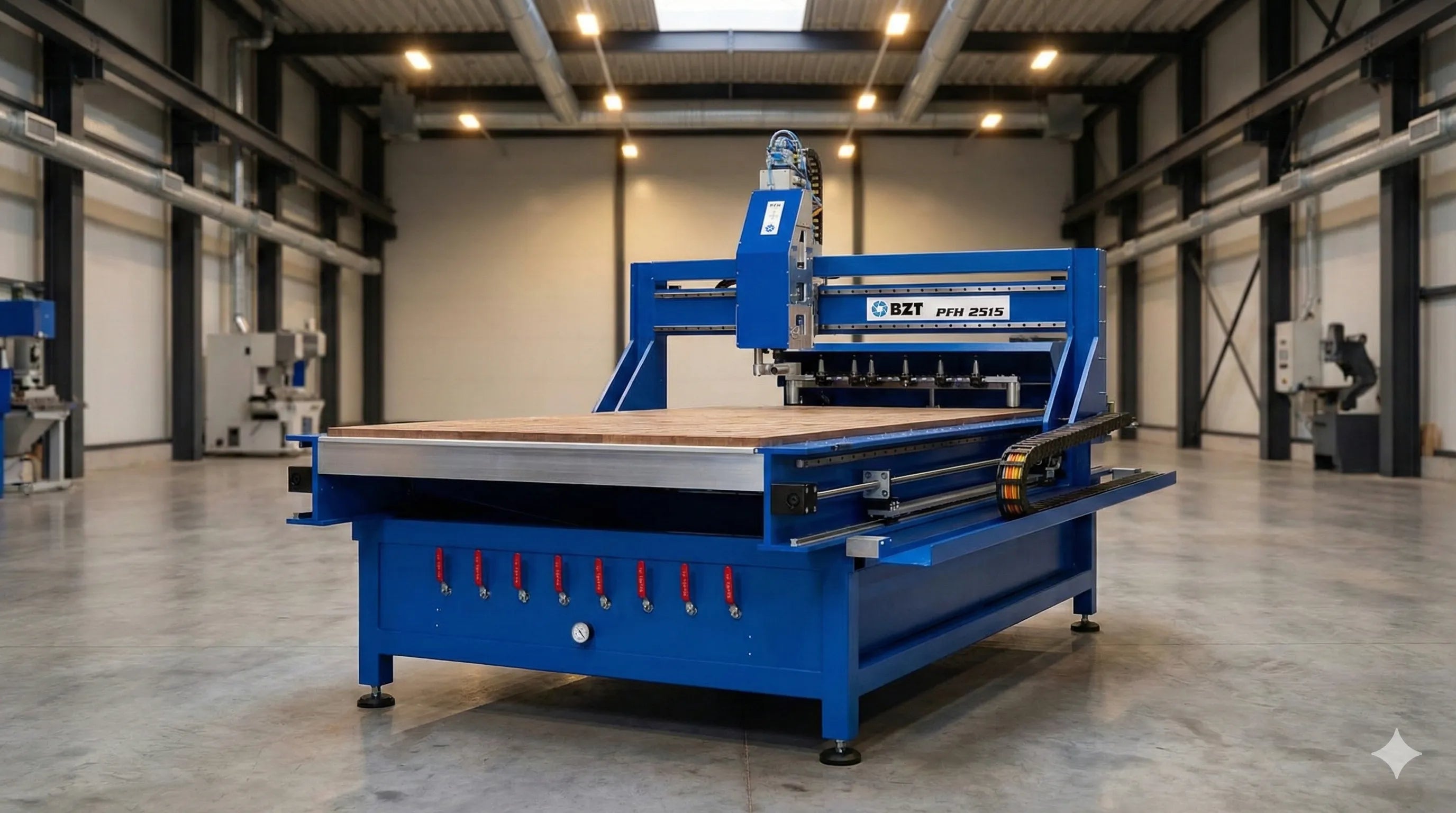

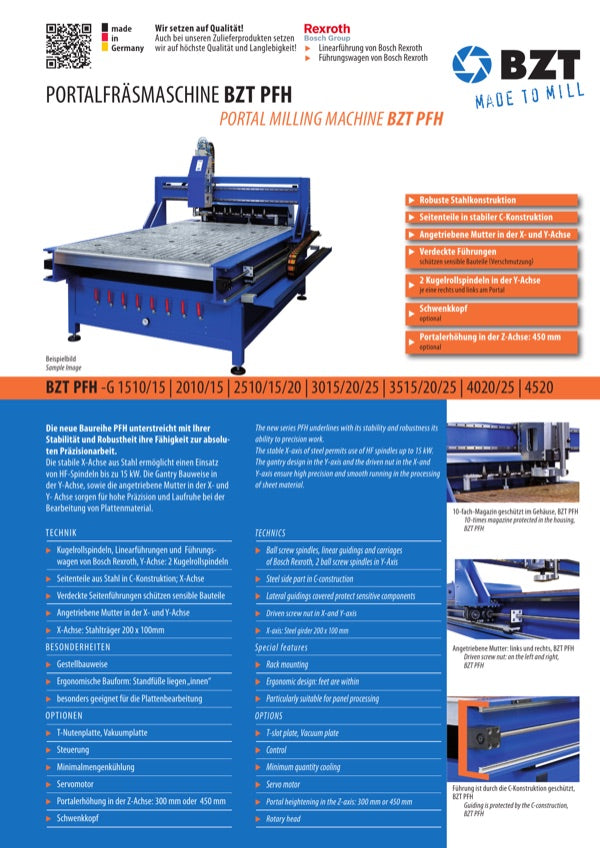

PFH Series	Industrial	1020 – 2520 mm	1510 – 4510 mm	170 mm (optional gantry riser 300 or 450 mm)	Wood, Plastics, Acrylic, Aluminium, Non-ferrous metals, Composites, Steel	Industrial large-format milling machine with steel beam for HF spindles up to 15 kW	Details

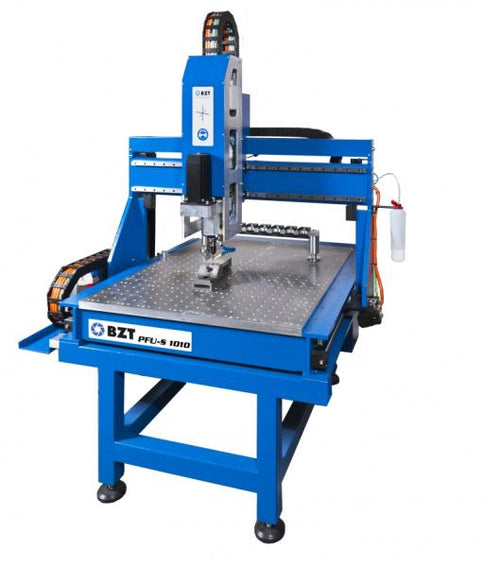

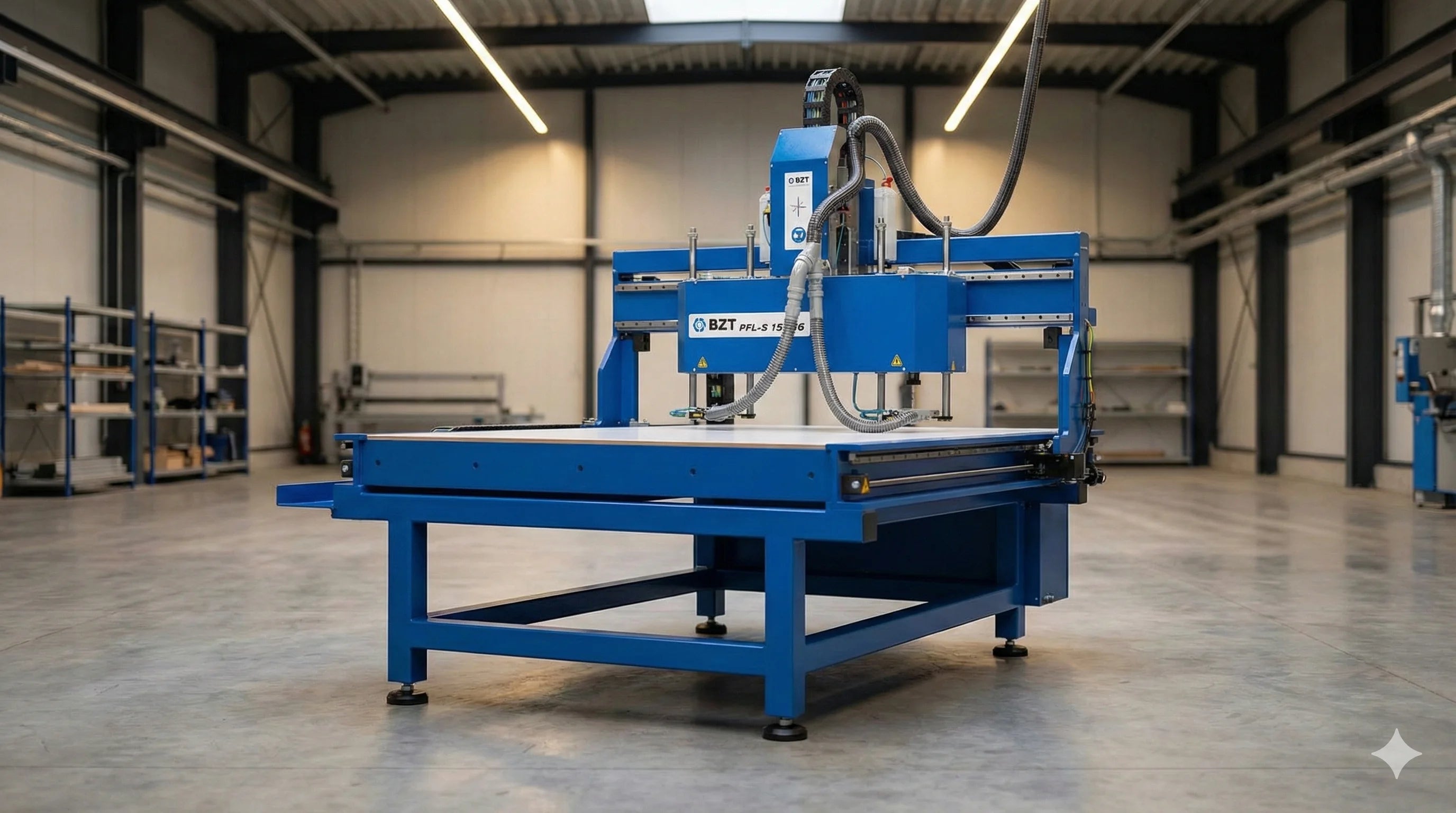

PFU-S Series	Industrial	1020 – 2020 mm	1010 – 4010 mm	170 mm	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Composites	Industrial large-format gantry milling machine with reinforced steel beam for maximum stability	Details

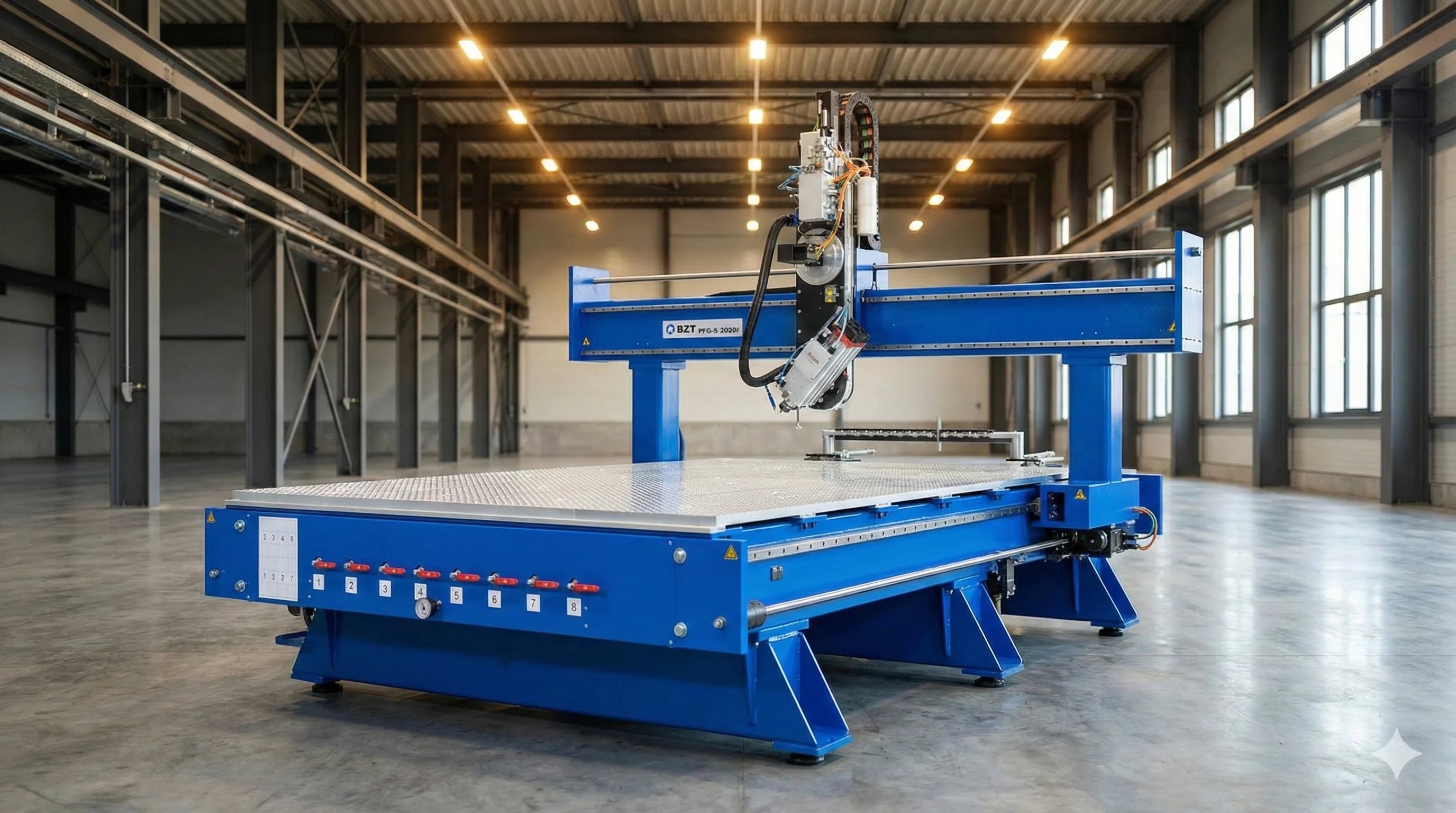

PFG-S Series	Industrial	1000 – 2000 mm	2000 – 4000 mm	400 mm (600 mm optional)	Steel, Wood, Plastics, Aluminium, Non-ferrous metals, Acrylic, Foam, Composites	Large-format industrial milling machine with steel frame and HF spindles up to 15 kW	Details

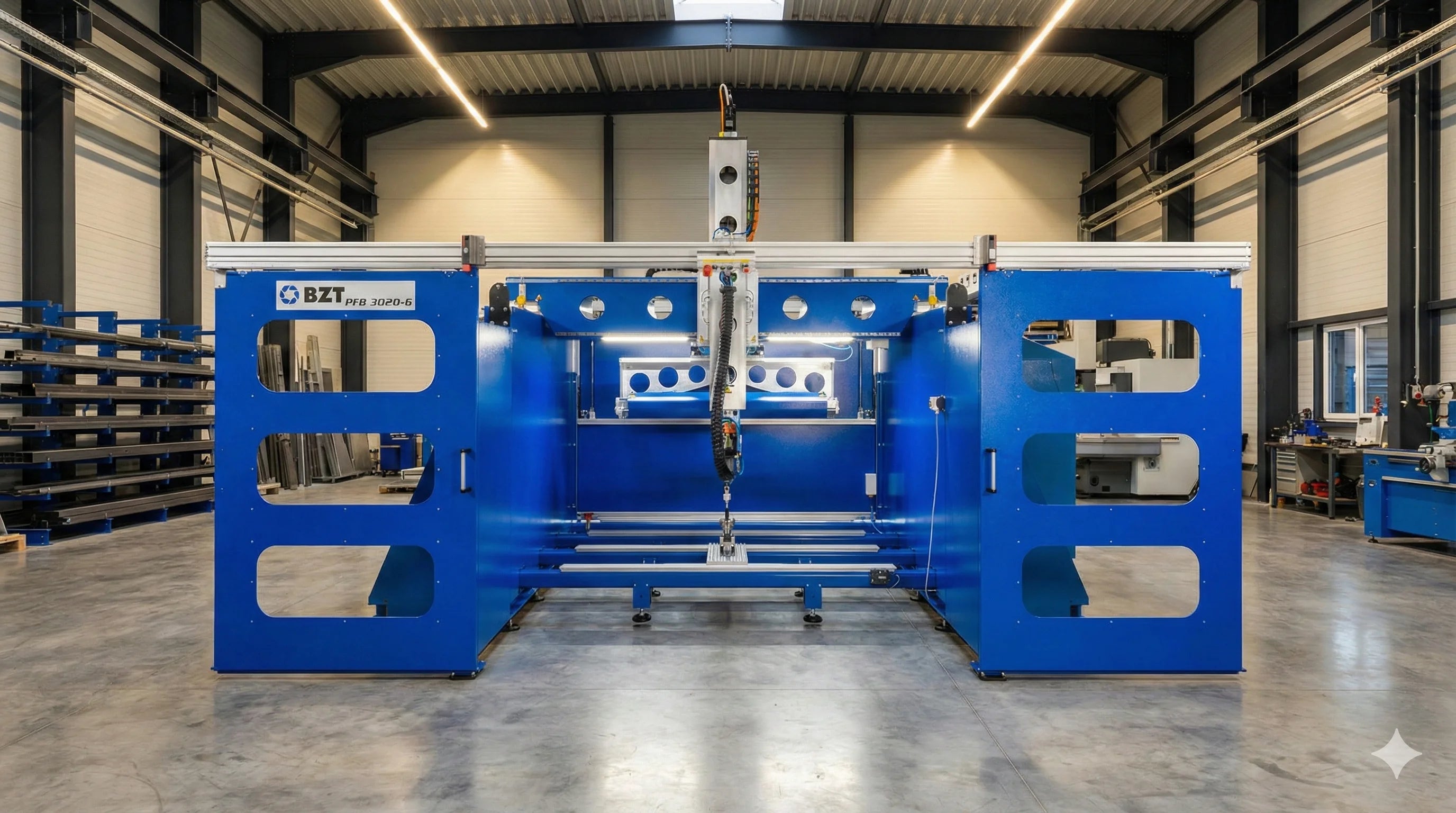

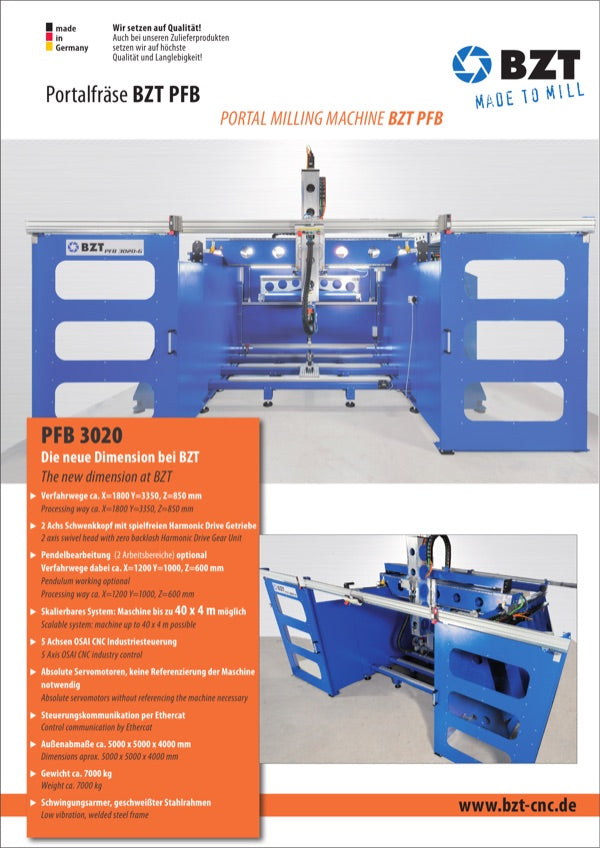

PFB Series	Industrial	approx. 1800 mm	approx. 3350 mm	approx. 850 mm	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Composites	5-axis heavy-duty machine for large parts, scalable up to 40 x 4 m.	Details
PFU-S-2 Series	Industrial	1020 – 1520 mm	1010 – 2510 mm	270 or 450 mm (gantry Z-300 / Z-450)	Wood, Plastics, Aluminium, Non-ferrous metals, Acrylic, Foam, Composites	Reinforced PFH base frame and large Z travel for tall workpieces.	Details

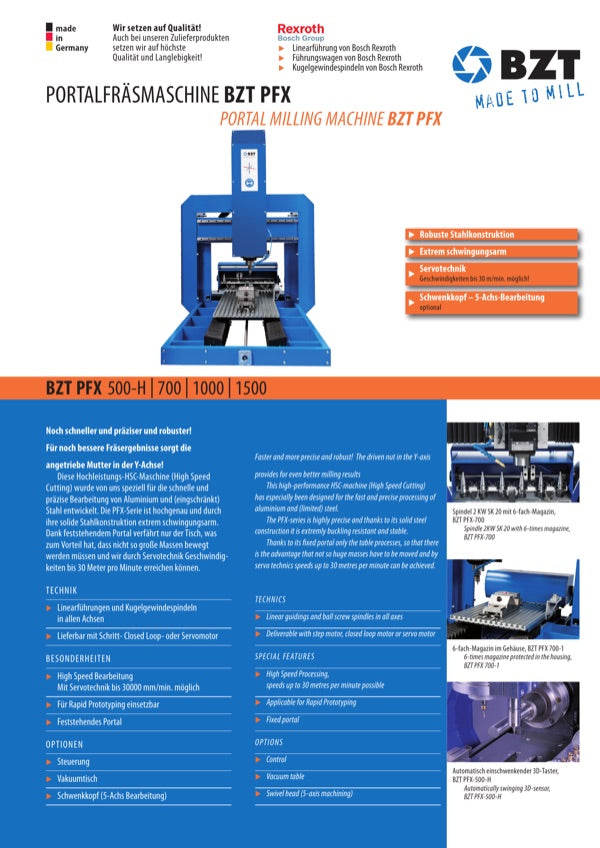

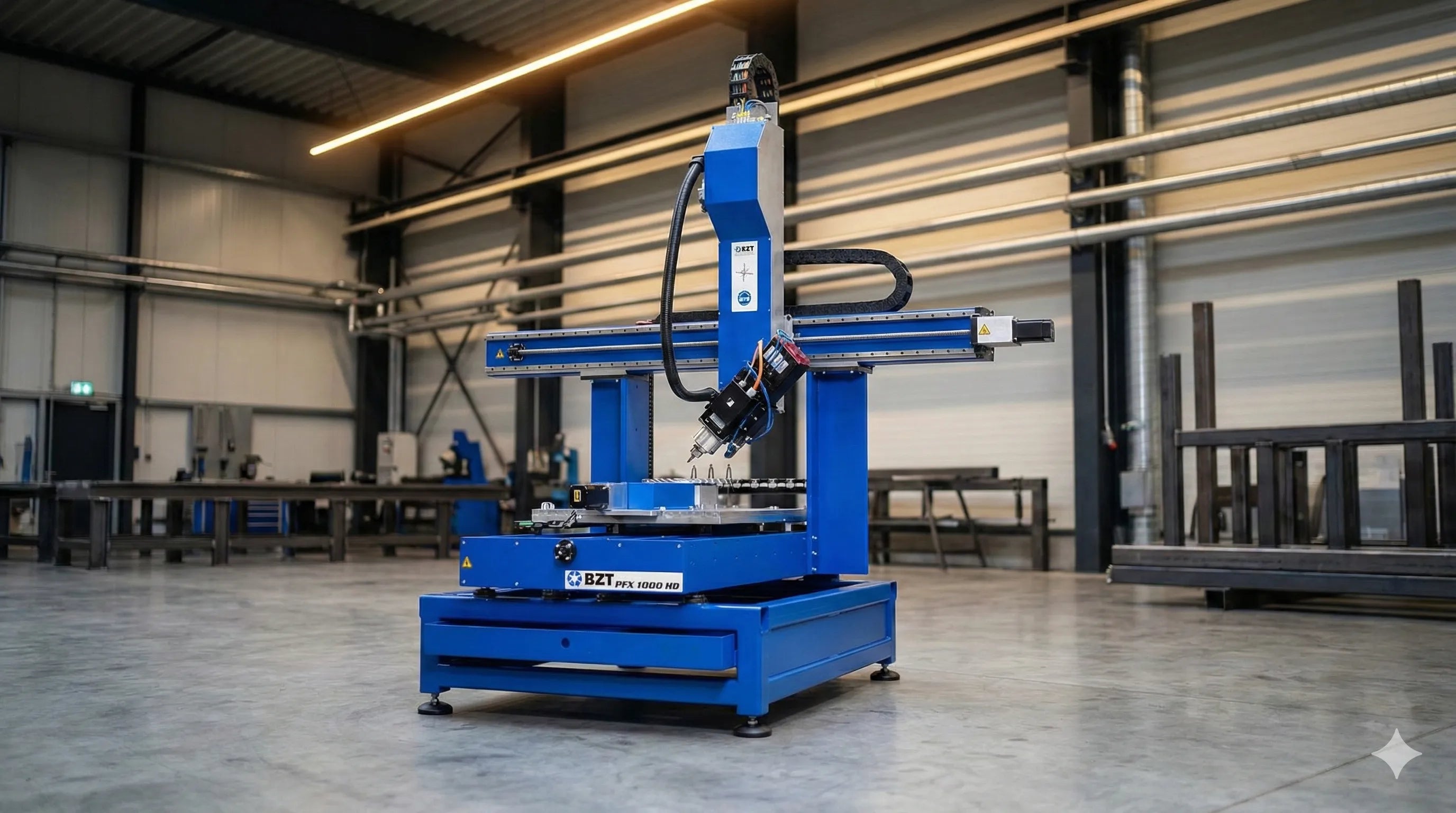

PFX Series	Industrial	up to 857 mm	up to 1450 mm	210 mm (500-H) \| 180 mm (700 / 1000 / 1500)	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Precious metals, Composites	Industrial HSC milling machine with steel construction for precise 3D milling and engraving	Details

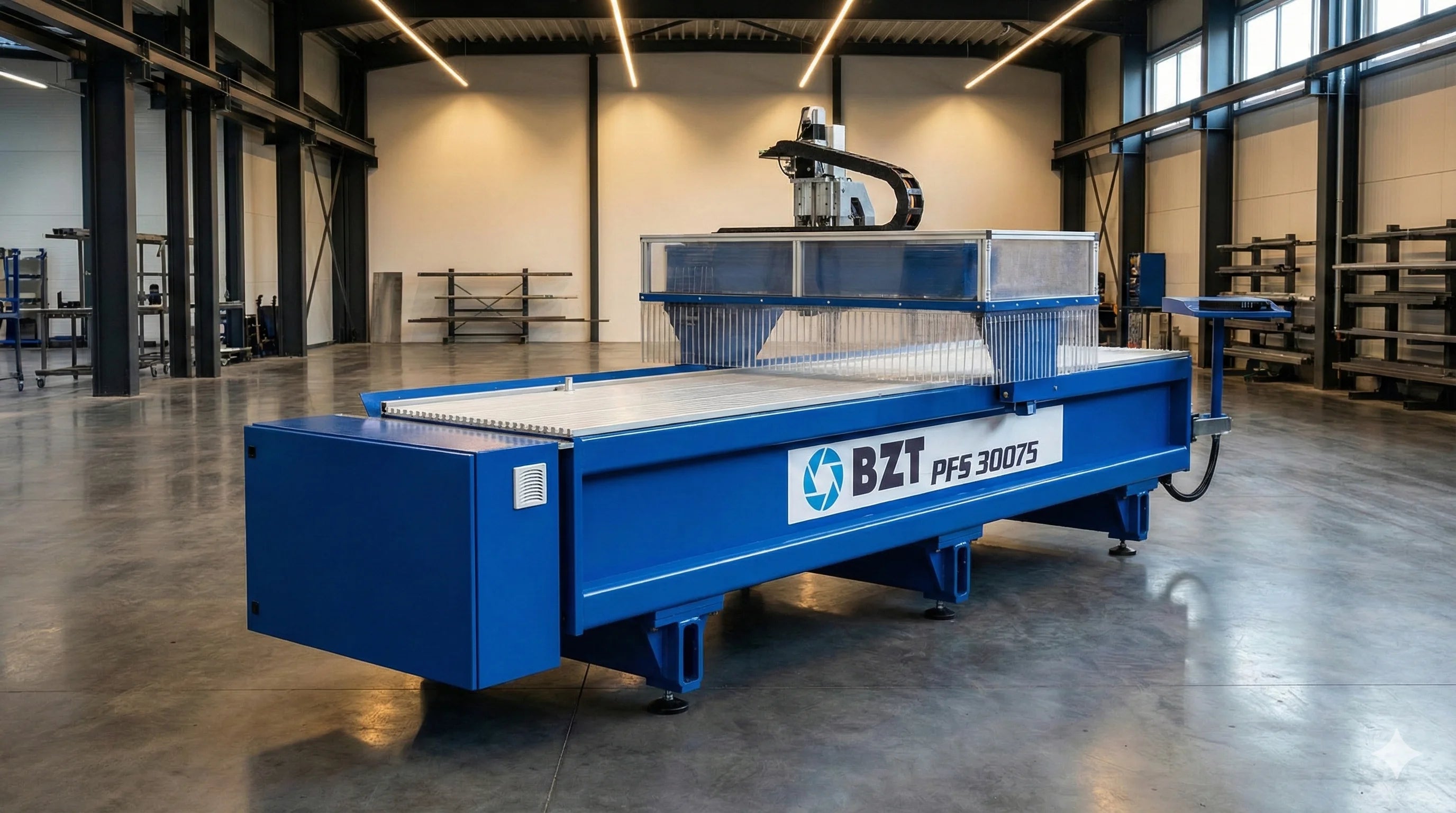

PFS Series	Special solution	1000 – 6000 mm	250 – 750 mm	180 mm (optional 450 mm gantry riser)	Wood, Plastics, Acrylic, Foam, Aluminium, Non-ferrous metals, Composites	Profile specialist with up to 6 m X travel and an open design that can be loaded from the side.	Details

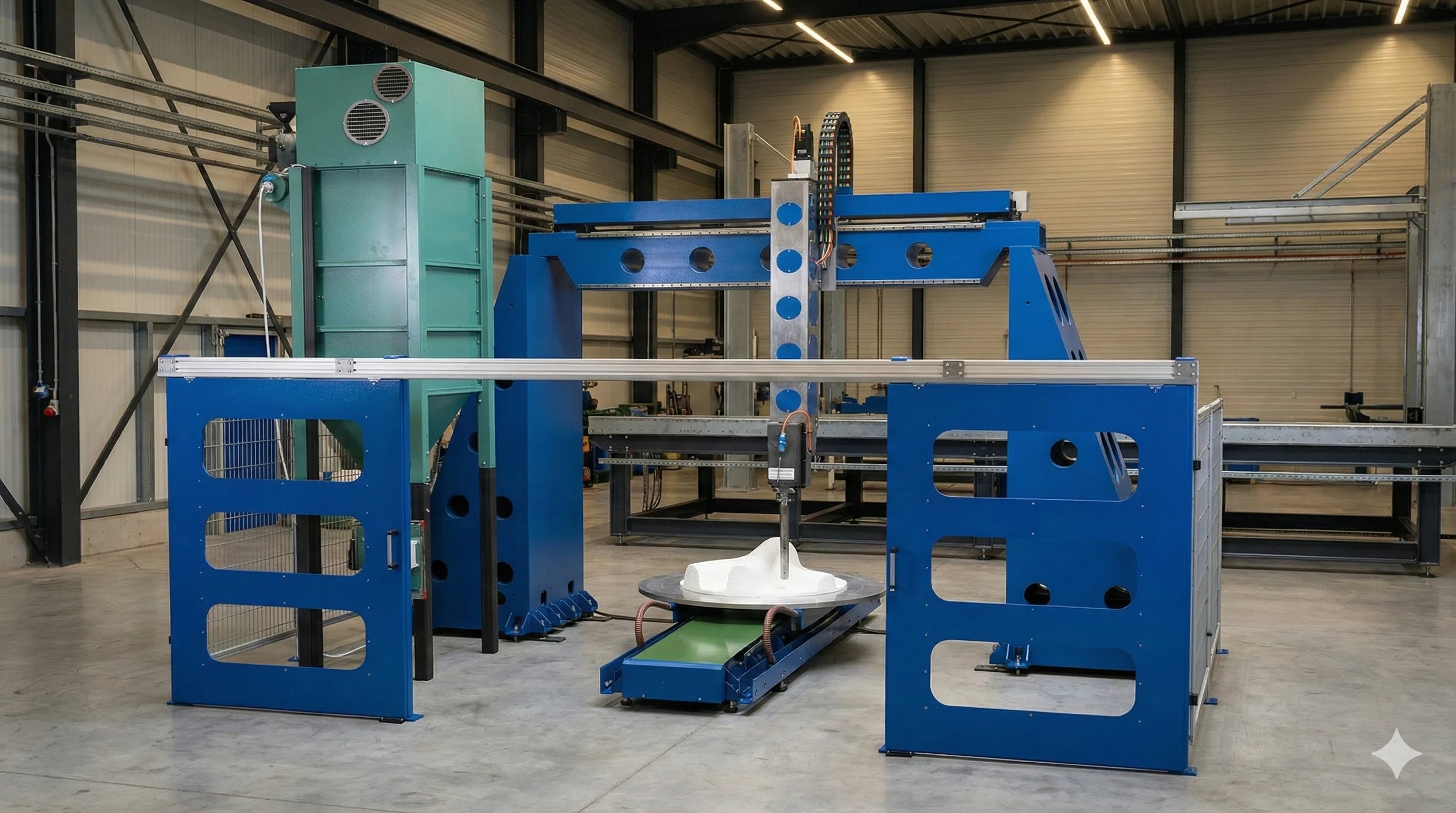

PFR Series	Special solution	1500 – 2500 mm	1500 mm	1000 mm	Wood, Plastics, Acrylic, Foam	Industrial large gantry milling machine with moving table for very large foam parts and large parts.	Details

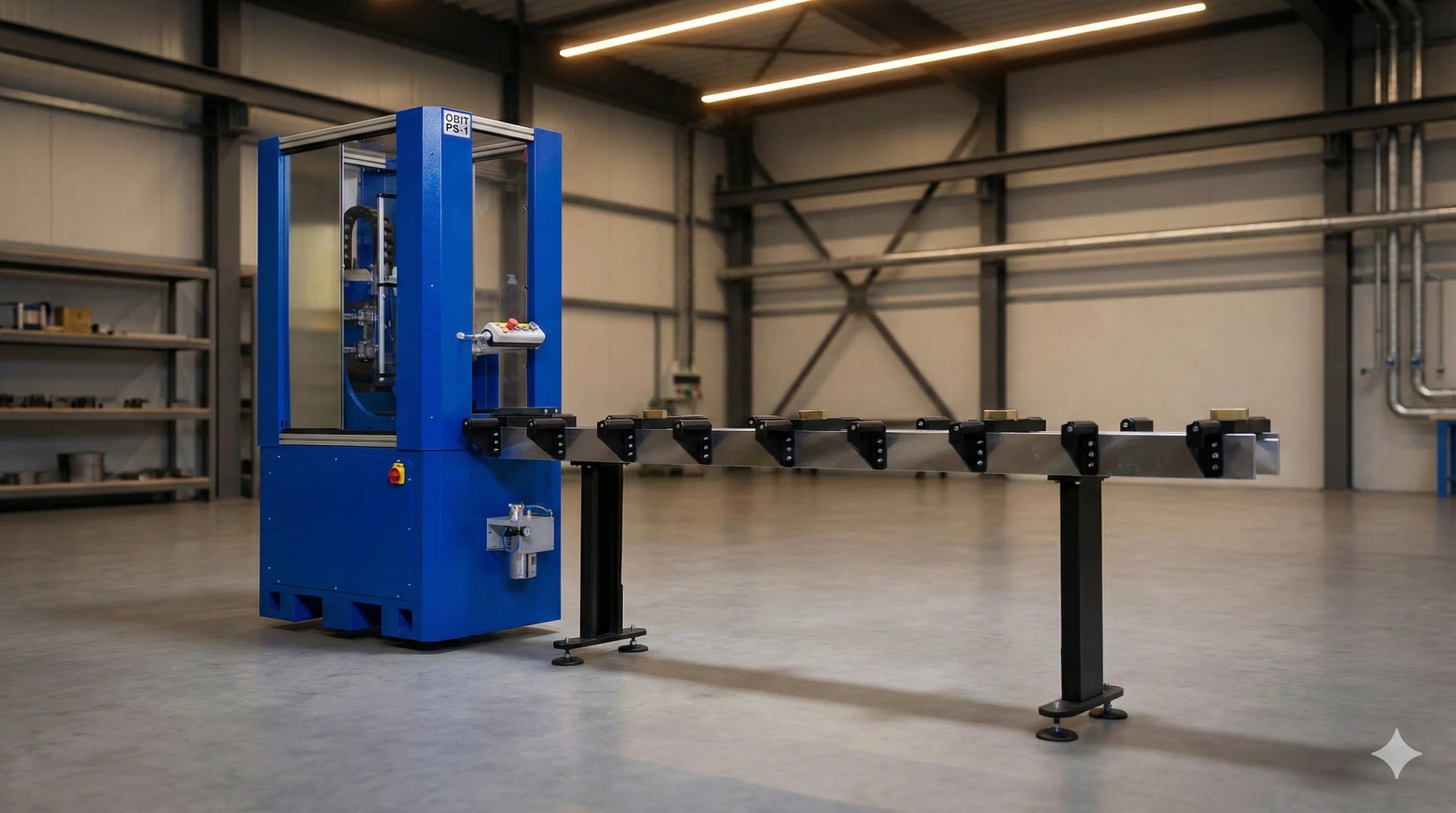

PS Series	Special solution	—	—	—	—	Horizontal milling machine for end machining of linear guide rails up to 45 x 60 mm.	Details

All specifications are guide values across all models of a series. Individual configurations on request. Prices excl. VAT.

€19.250,00excl. VAT

Request a quote

Not sure which series is right?

Our experts advise you personally and find the optimal solution.

Free consultation +49 5202 99306-80

Frequently asked questions

How is a BZT CNC portal milling machine configured and quoted?

Every BZT portal milling machine is configured individually for your application — from compact entry-level models (e.g. PFK, PFI) and professional all-rounders (PFE, PFU) to industrial machines (PFH, PFG-S, PFX). The price depends on the series, travel ranges, spindle, control and options, and is therefore prepared individually. Using the inquiry form or by phone, you will receive a quote tailored to your requirements — all prices are net plus VAT.

Which materials can I machine with a BZT CNC milling machine?

All BZT portal milling machines machine wood, plastics, composites and aluminium. The PFH and PFX series are additionally designed for steel machining. Besides machine rigidity, the right HF spindle and suitable milling tools are also decisive. Our application engineers will be happy to advise you on the optimal configuration.

What is the difference between the BZT series?

BZT offers 17 series for different requirements: The PF, PFL and PFI are compact entry-level models for hobbyists and semi-professionals. PFE, PFK, PFJ, PFU and PFA cover the professional all-round range. PFX, PFH, PFG-S, PFB, PFU-S and PFU-S-2 are industrial machines for the highest requirements. Special models such as PFR (large parts), PFS (profiles) and PS (horizontal milling machine) round off the range.

Is the CNC milling machine delivered fully assembled?

Yes, all BZT portal milling machines are pre-assembled, tested and delivered ready for operation from our plant in Leopoldshöhe (Germany). Delivery is by freight forwarder on a pallet. Optionally, we offer instruction and training on site or at our training centre. For commissioning you only need a power connection (230V or 400V depending on the model) and a CNC control.

Can I upgrade a BZT machine at a later date?

Absolutely — the modular system is one of BZT's greatest strengths. Typical upgrades are: switching from a milling motor to an HF spindle, retrofitting an automatic tool changer, integrating a 4th axis, adding an enclosure or a gantry extension for larger Z travel. Vacuum tables, extraction systems and cooling systems can also be added at any time.
