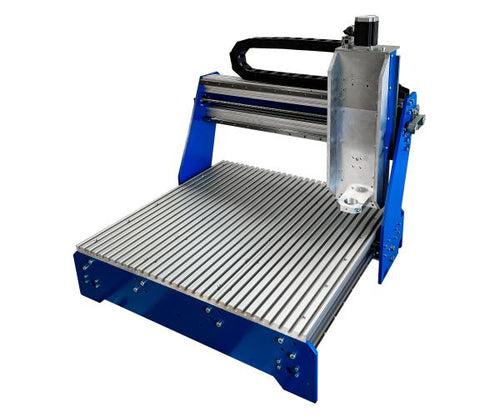

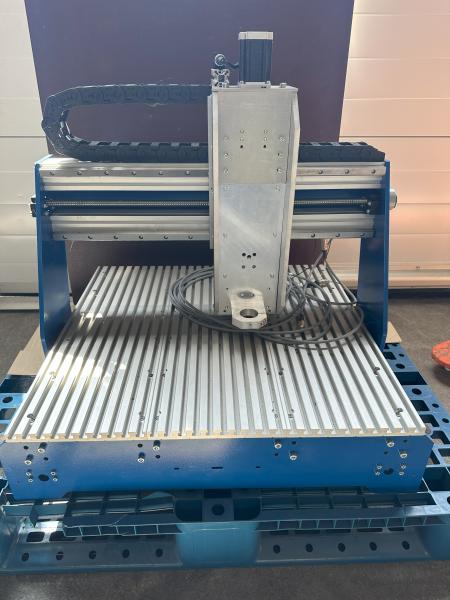

BZT PFStability and flexibility with maximum reliability
Compact and affordable gantry mills for hobby, model making and light engraving work.
Technical data sheet — PF
Click page to enlarge · pinch to zoom on smartphone
Design & Details
What defines the PF
Work area
- Clamping area X × Y
- 375 × 600 mm (600-P) bis 1000 × 1600 mm (1610-P)
- Travel X
- 290 – 905 mm
- Travel Y
- 490 – 1495 mm
- Travel Z
- 110 mm
- Machinable area
- X 280 – 875 mm | Y 405 – 1380 mm
- Clearance height Z
- ca. 130 mm
- Material clearance
- ca. 30 mm
Drive & mechanics
- Repeatability
- 0,02 – 0,03 mm
- Rapid traverse speed
- 8000 mm/min (600–1010-P) | 6000 mm/min (1400–1610-P)
- Max. working speed
- 4000 mm/min
- Programmable resolution
- 0,0025 mm
- Max. backlash
- 0,025 mm (600–1010-P) | 0,04 mm (1400–1610-P)
- Ball screws
- X + Y 16 × 10 mm | Z 16 × 5 mm
- Guides
- Rundführungen Ø 25 mm, gehärtet und geschliffen
- Linear guides X + Y
- 25 mm, gehärtet und geschliffen (1010-P, 1410-P, 1610-P)
- Drive
- Schrittmotoren STEP 3 × 4,2 A / 3,3 Nm
General
- Weight
- 31 – 80 kg
- Outer dimensions L × W × H
- 900 × 650 × 610 mm (600-P) bis 1900 × 1270 × 610 mm (1610-P)
- Models
- 600-P, 750-P, 1000-P, 1010-P, 1400-P, 1410-P, 1600-P, 1610-P
- Category
- Einsteiger & semiprofessionell
Design
Rundführungen Ø 25 mm, gehärtet und geschliffen
Kugelrollspindeln X + Y 16 × 10 mm, Z 16 × 5 mm
Stabile C-Konstruktion in der Z-Achse
Höhere Stabilität durch zusätzliche Linearführungen in der X-Achse (PF 1010-P, 1410-P, 1610-P)
Nach unten offene Konstruktion: kann direkt auf Werkstücke gestellt werden
Durchlasshöhe Z ca. 130 mm
Materialdurchlass ca. 30 mm
Geringes Gewicht, transportabel (ab 31 kg)
Rotex-Kupplungen zwischen Schrittmotor und Spindel
Control & drive
Schrittmotoren STEP 3 × 4,2 A / 3,3 Nm pro Achse
Präzisions-Referenzschalter (Schaltgenauigkeit max. 0,02 mm)
Steuerung modular erweiterbar, mit 2 × 230 V Schaltausgängen (optional)
Choose the right size
Model not listed?
Not every PF configuration is listed online – many machines are built individually to order. Tell us your requirements (travel ranges, spindle, control) and we will put together the right machine for you.
Applications & Materials
Applications and Materials:
During milling, some materials require cooling.
Expand your PF
Consultation on the PF series
We help you choose the right size and configuration — spindle, control, table type and options. You will receive an individual quote.
What is the BZT PF series?
Kompakte und kostengünstige Portalfräsen für Hobby, Modellbau und leichte Gravurarbeiten. Die CNC-Portalfräsmaschine BZT PF ist ein ideales Einstiegsmodell für den semiprofessionellen Einsatz zur Aluminium-, Kunststoff- und Holzbearbeitung. Die CNC-Fräsmaschinen dieser Baureihe haben einen hohen Bedienkomfort und eine stabile Rahmenkonstruktion. Rundführungen sowie 16 mm Kugelrollspindeln in allen Achsen zeichnen die Portalfräsmaschinen-Baureihe BZT PF in dieser Preisklasse besonders aus. Kleine bis mittlere Teile aus Materialien, wie z. B. Acrylglas, Nichteisenmetalle, Schaumstoffe und Holz, können präzise bearbeitet werden.
Frequently Asked Questions about the BZT PF Series
What distinguishes the BZT PF series from the PFK and PFE?
The PF series is the versatile standard range. The PFK series offers more compact designs with a reinforced frame for higher cutting performance. The PFE series has an extended Z-axis travel and is particularly suitable for tall workpieces and 3D machining. All series share the same BZT quality and control compatibility.
What materials can I machine with a BZT PF?
The BZT PF machines reliably process wood, plastics (acrylic, POM, PA), composite materials, aluminium and, with a suitable spindle, also brass and copper. For steel machining, we recommend the PFK series with HF spindle. The choice of material primarily determines the optimal milling motor and tool configuration.
Can I buy the BZT PF as a kit?
Yes, selected PF models are available as a basic kit. You receive all mechanical components (frame, guides, spindles, motors) and assemble the machine yourself. The control system and software can be selected separately. The kit is suitable for technically savvy users who wish to configure the machine individually.
Which control system does BZT recommend for the PF series?
For beginners, we recommend the BZT E-ST 43-3 (3-axis) or E-ST 44-3 (4-axis) control system with integrated controller. For professional applications, our USB control systems offer maximum flexibility. All BZT control systems are plug-and-play compatible with PF machines and are supplied pre-configured.
How large is the travel path of the PF machines?
The BZT PF series covers traversing ranges from 300×400 mm (PF 0304) to 1500×1000 mm (PF 1510). The most popular models are the PF 750 (750×600 mm) and PF 1000 (1000×600 mm). The Z-axis stroke is 110–200 mm depending on the model. For larger traversing ranges, the PFL series (up to 3000 mm in length) is available.
