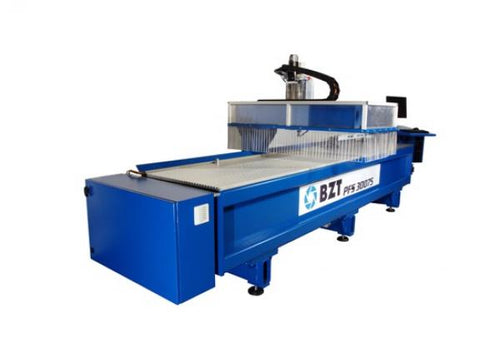

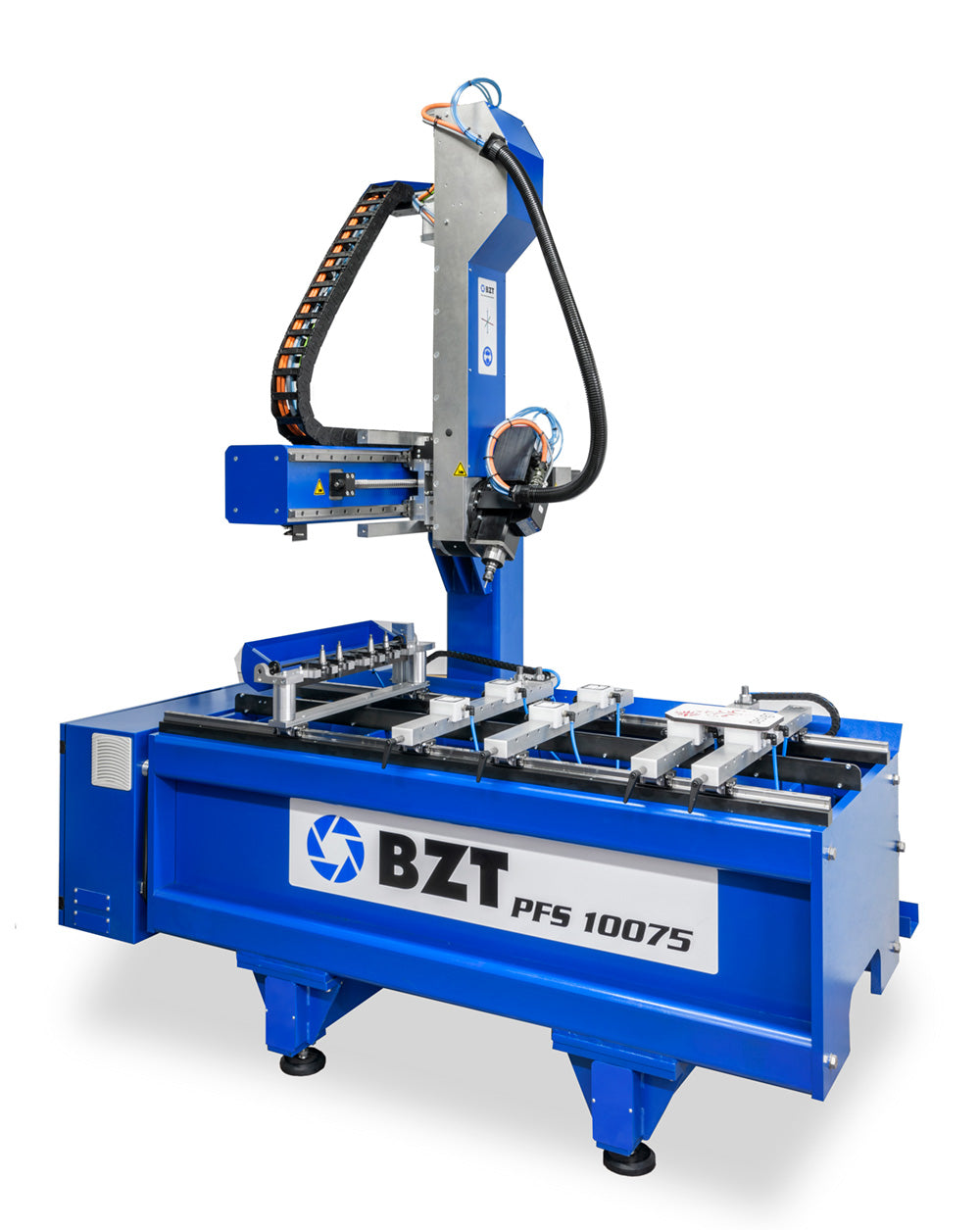

BZT PFSThe specialist for perfect profile machining
The PFS series for profiles in trade and industry with high operating comfort.
Technical data sheet — PFS
Click page to enlarge · pinch to zoom on smartphone
Design & Details
What defines the PFS
Work area
- Clamping area X × Y
- 1896 × 750 mm to 6896 × 750 mm
- Travel X
- 1000 – 6000 mm
- Travel Y
- 250 – 750 mm
- Travel Z
- 180 mm (optional 450 mm gantry riser)
Drive & mechanics
- Repeatability
- approx. 0.01 mm (fixed bearing side)
- Traverse speed
- X + Y approx. 25 m/min | Z approx. 12 m/min
- Linear guides
- 25 mm in X, Y and Z axis, ground and surface-hardened (Bosch Rexroth)
- Ball screws
- X + Y 25 × 10 mm | Z 16 × 5 mm (large models X 16 × 10 mm)
- Drive system
- Ball screws with driven nut in X and Y axis; precision racks in X from PFS 50075
- Drive
- Servo (optional servo motor 750 W / 7.16 Nm)
General
- Weight
- approx. 2450 – 2950 kg
- Outer dimensions L × W × H
- approx. 2200 × 1600 × 2100 mm to 7200 × 1600 × 2100 mm
- Power supply
- 230 V / 50 Hz (PFS 60075 also 380 V / 50 Hz)
- Category
- Special solutions
- Special feature
- Profile specialist, profile and bar machining

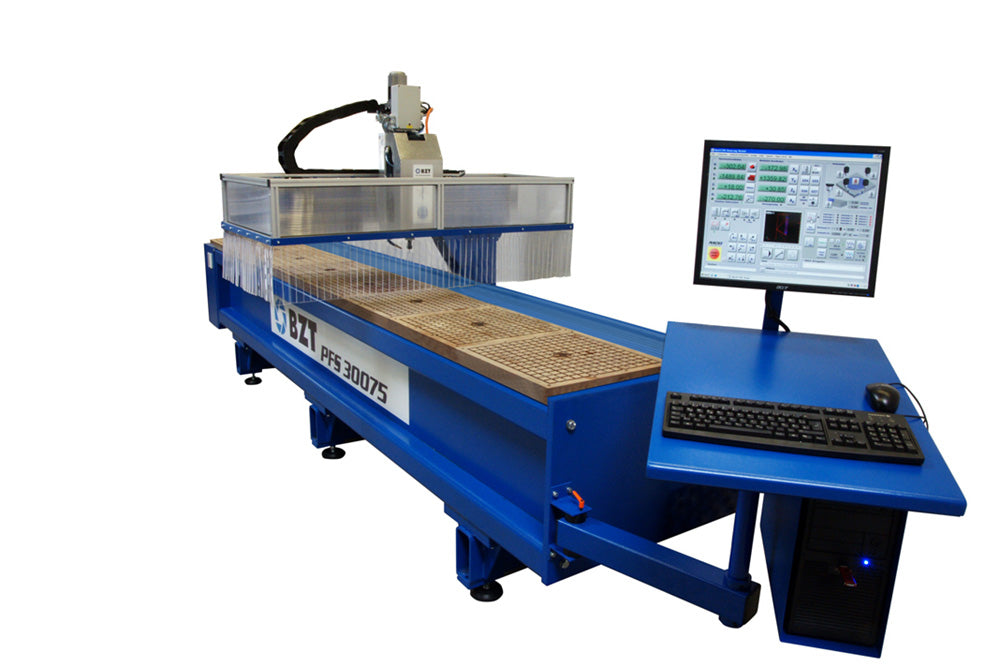

Design
Sturdy, welded steel construction for smooth running and precise accuracy when machining the workpieces.

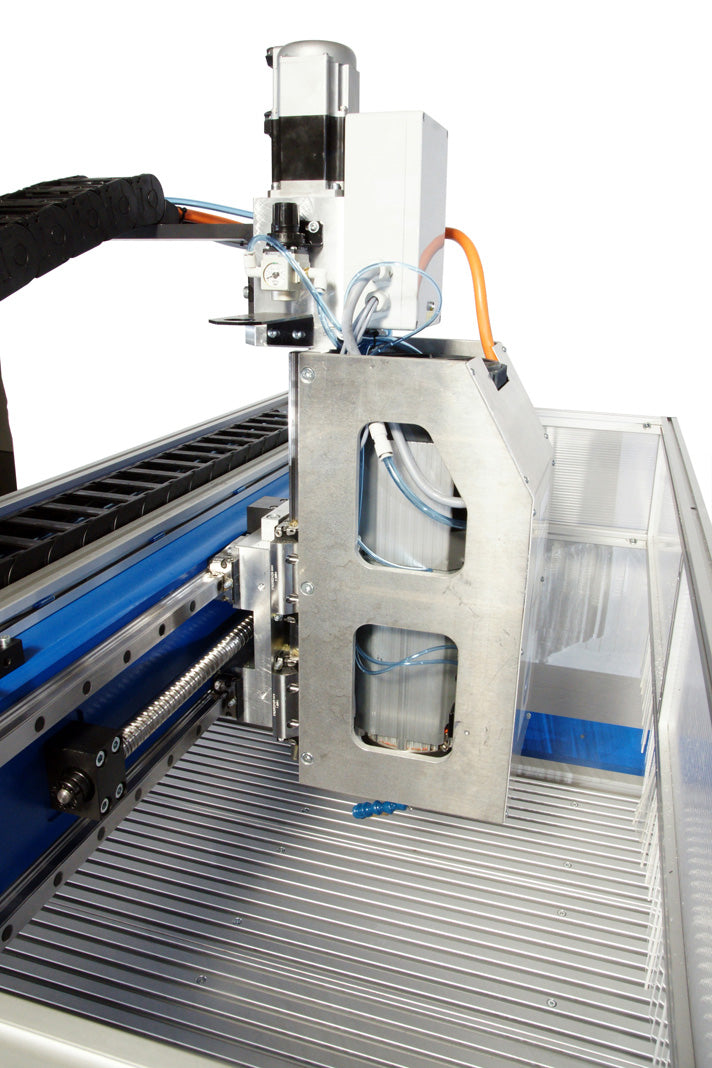

Linear guides X, Y and Z axis 25 mm, ground and surface-hardened.
Closed linear guide system, linear guides and guide carriages from Bosch Rexroth.

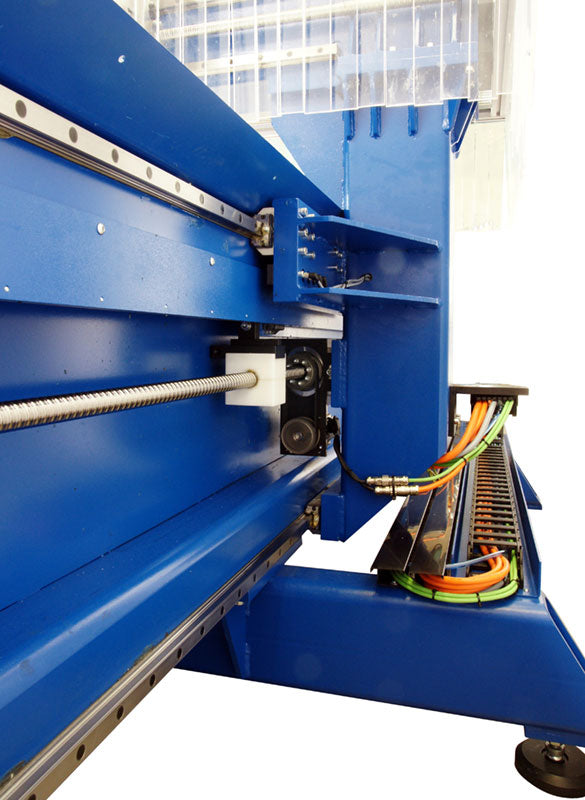

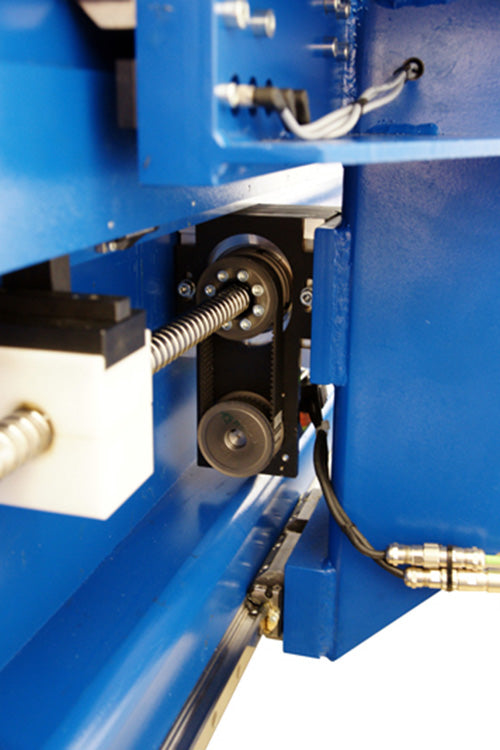

Ball screws in all axes, driven nut in the X and Y axis (up to 4 m travel in the X axis).
Precision racks in the X axis (from 4 m travel).
Travels X up to 6000 mm (Y up to 750 mm).
Milling machine specially tuned for profile and bar machining, open on three sides: easy handling of the workpieces.

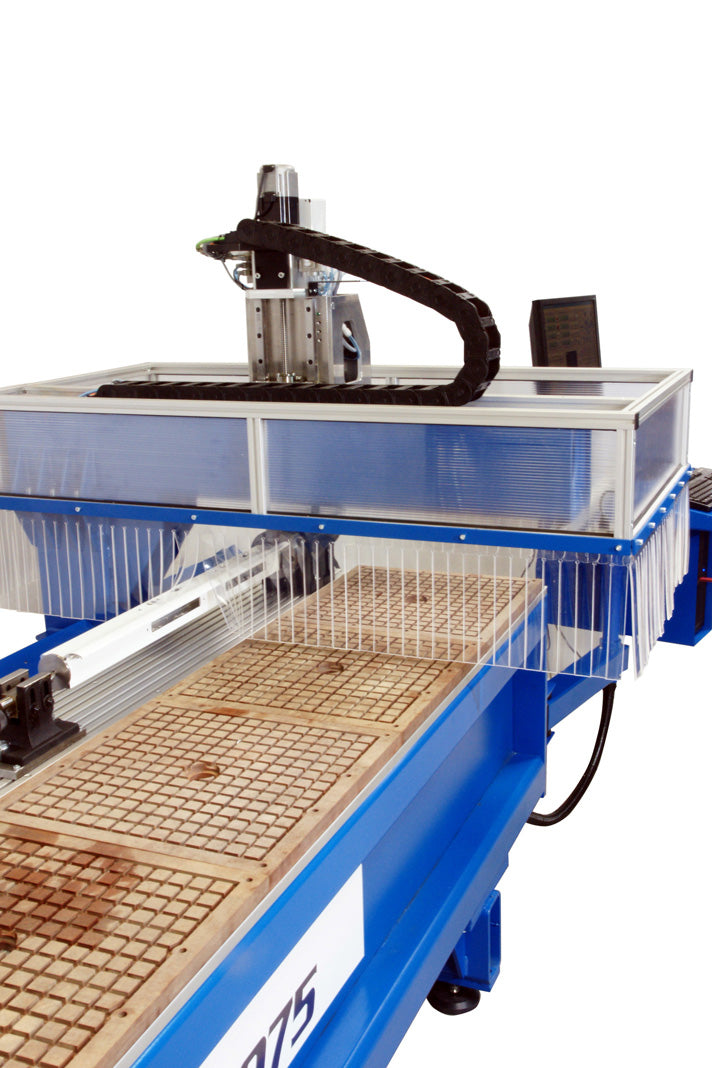

Optional: gantry riser in the Z axis 450 mm, T-slot plate 15 or 20 mm, vacuum table, rotary axis/swivel head (5-axis machining), automatic tool changer.
Control & drive
Drive supplied as servo as standard; optionally selectable as closed-loop or servo control.
Optional servo motor 750 W / 7.16 Nm.
Work-area limit switches implemented in software.
Power supply 230 V / 50 Hz; PFS 60075 also available with 380 V / 50 Hz.
High-quality components from renowned manufacturers (including Bosch Rexroth for guides and ball screws).
Choose the right size
Model not listed?
Not every PFS configuration is listed online – many machines are built individually to order. Tell us your requirements (travel ranges, spindle, control) and we will put together the right machine for you.

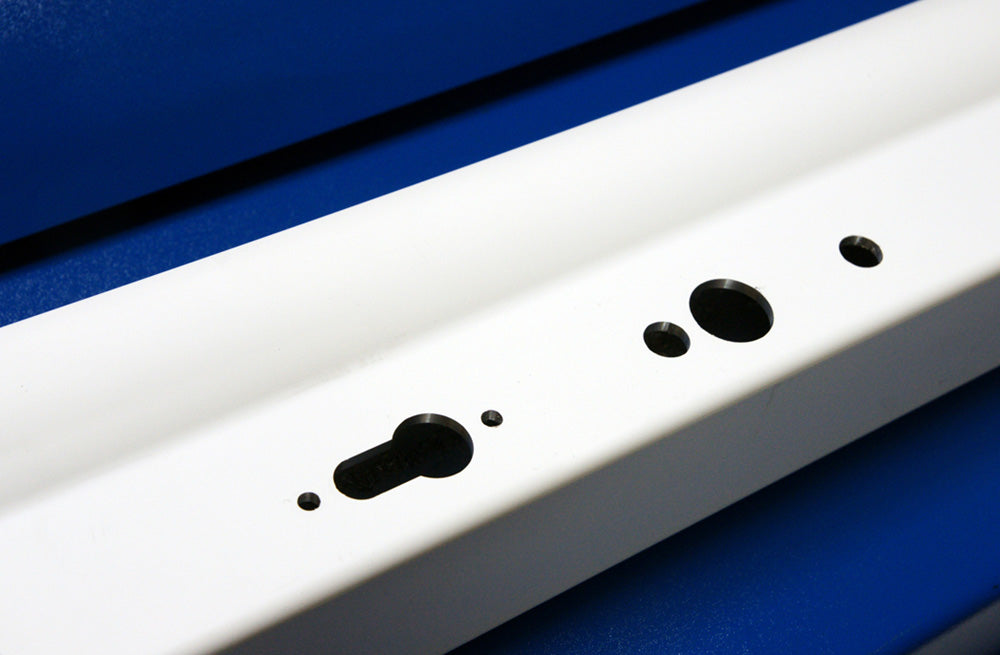

Applications & Materials
Applications and Materials:

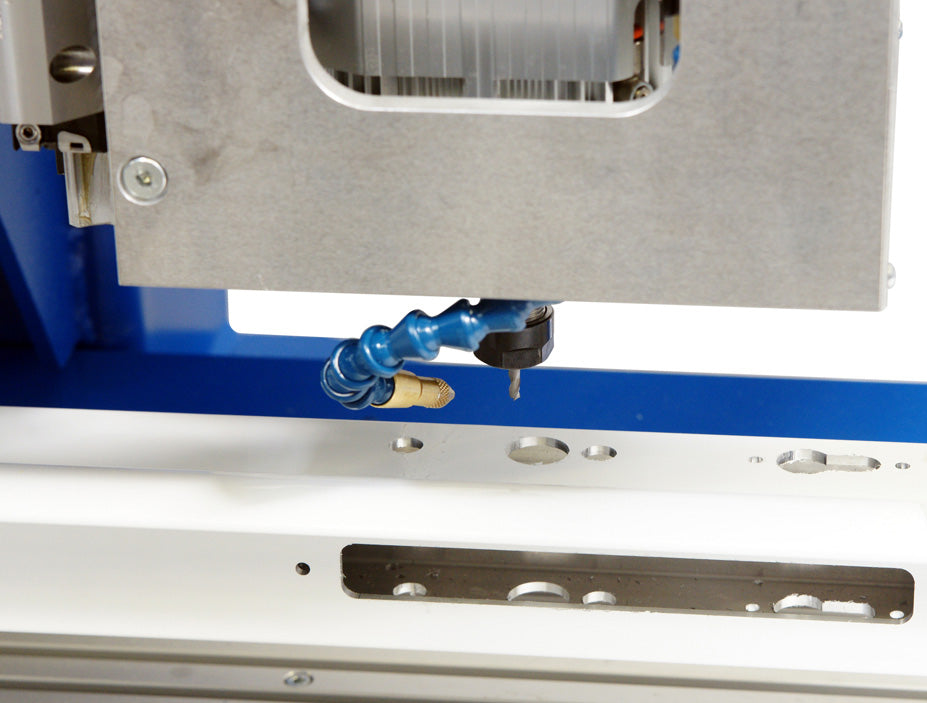

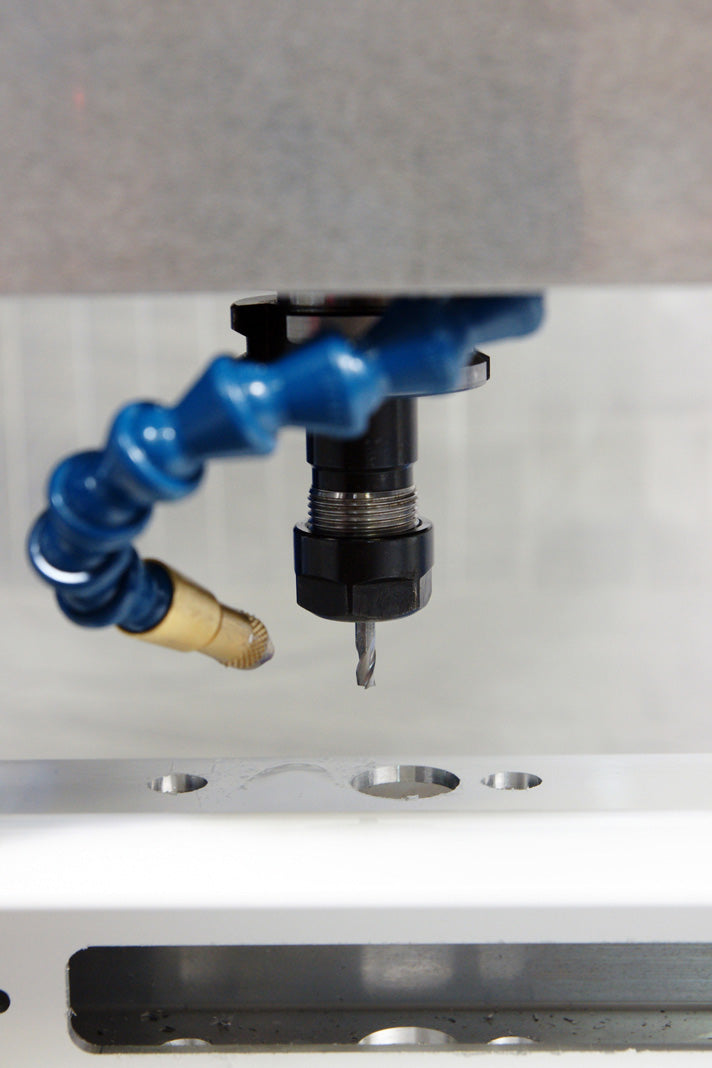

During milling, some materials require cooling.
Expand your PFS
Good to know about the PFS series
Which materials can the BZT PFS machine?
What accuracy does the PFS series achieve?
How fast does the PFS series work?
Where is the PFS series manufactured?
How can I request a quote for the PFS?
Consultation on the PFS series
We help you choose the right size and configuration — spindle, control, table type and options. You will receive an individual quote.
What is the BZT PFS series?
Open design, side loading and short setup times – optimised for profile and bar machining. The CNC milling machines of the PFS series are specially tuned CNC machining centres for profile machining. The open design ensures a high level of operating comfort; side loading results in short setup times and an efficient workflow – especially with long workpieces. The sturdy, welded steel construction promotes smooth running and precise accuracy. With ball screws in all axes and driven nuts in the X and Y axis, excellent surfaces are achieved during milling.
