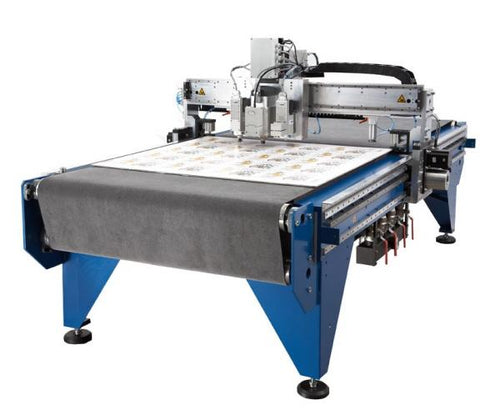

BZT PFAOur A-class for sign making and advertising technology
The PFA series with gantry design and high-precision ball screws.
Technical data sheet — PFA
Click page to enlarge · pinch to zoom on smartphone
Design & Details
What defines the PFA
Work area
- Clamping area X × Y
- 1000 × 1000 to 2000 × 6000 mm
- Travel X
- 1050 – 2050 mm
- Travel Y
- 1050 – 6050 mm
- Travel Z
- 135 mm
- Clearance height Z without table
- approx. 200 mm
- Z axis for HF spindles
- up to 2.2 kW
- Gantry riser (option)
- Z = 180 mm
Drive & mechanics
- Repeatability
- 0.01 mm
- Traverse speed
- approx. 30,000 mm/min (stepper motor)
- Drive
- Closed-loop stepper motor (4 × 6 A) or AC servo motor (4 × 750 W)
- Ball screw Z
- 16 × 5 mm
- Racks X | Y
- helical, X + Y 25 mm
- Linear guides
- Linear roller guides (Bosch Rexroth)
General
- Weight
- 400 – 1410 kg
- Outer dimensions L × W × H
- approx. 1600 × 1600 × 1500 to 6600 × 2600 × 1500 mm
- Power supply
- 230 V / 50 Hz (from PFA 2515 also 380 V / 50 Hz)
- Gantry design
- 2 helical racks in the Y axis
Design
Available with closed-loop or servo motors
Ball screw in the Z axis
Helical racks in the X and Y axis (25 x 25 mm)
Slotted plate (15 mm or 20 mm thickness)
Pneumatic control of up to two additional tools on the Z axis
Control & drive
Optiscout control with registration mark detection – highest registration accuracy without elaborate alignment of printed materials (optional)
Available with closed-loop stepper motor or AC servo motor
Tangential cutting knife and creasing tool for contour cutting (optional)
Power supply 230 V / 50 Hz (larger models also 380 V / 50 Hz)
Choose the right size
Model not listed?
Not every PFA configuration is listed online – many machines are built individually to order. Tell us your requirements (travel ranges, spindle, control) and we will put together the right machine for you.
Applications & Materials
Applications and Materials:
During milling, some materials require cooling.
Expand your PFA
Good to know about the PFA series
Which materials can the BZT PFA machine?
What accuracy does the PFA series achieve?
How fast does the PFA series work?
Where is the PFA series manufactured?
How can I request a quote for the PFA?
Consultation on the PFA series
We help you choose the right size and configuration — spindle, control, table type and options. You will receive an individual quote.
What is the BZT PFA series?
Economical gantry milling machine for precise milling and cutting – optionally with Optiscout for registration mark detection. See for yourself: mill and cut to perfection. We developed the PFA in gantry design, relying on high-precision components – including ball screws in the Z axis. With the optional Optiscout control incl. registration mark detection, you achieve the highest registration accuracy during machining. Costly and time-consuming alignment of printed materials is therefore no longer necessary.
