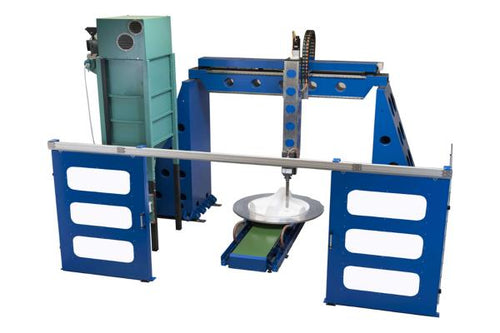

BZT PFRIndustrial production of large parts
The PFR series is ideal for prototypes and industrial production.
Technical data sheet — PFR
Click page to enlarge · pinch to zoom on smartphone
Design & Details
What defines the PFR
Work area
- Clamping area
- Ø 1600 mm (PFR 2020) | 2500 x 1500 mm (PFR 2030)
- Machinable area
- Ø 1600 mm (PFR 2020) | 2500 x 1500 mm (PFR 2030)
- Travel X
- 1500 – 2500 mm
- Travel Y
- 1500 mm
- Travel Z
- 1000 mm
- Clearance height Z (gantry)
- 1540 mm (without cutter)
Drive & mechanics
- Repeatability
- up to approx. +/- 0.01 mm
- Rapid traverse speed
- up to 25,000 mm/min
- Servo motor drive
- X + Y 1 kW | Z 2 kW
- Guides (hardened and ground) X | Y | Z
- 25 mm
- Ball screws X | Y | Z
- X + Z 25 mm x 10 | Y 25 mm x 25
General
- Weight
- 1.800 kg (PFR 2020) | 2.200 kg (PFR 2030)
- Max. power
- 12 kW
- Power supply
- 400 V / 50 Hz
- Outer dimensions (L × W × H)
- 5200 x 5500 x 4500 mm (PFR 2020) | 5200 x 6500 x 4500 mm (PFR 2030)
- Category
- Special solutions
- Special feature
- Large-part production, custom construction
Design
The X and Z axes are permanently integrated into the gantry and only the machine table moves as the Y axis.
Extremely low vibration thanks to the robust steel construction.
All screws are supported by at least 3 bearings: one fixed bearing (2 ball bearings) and one floating bearing (1 ball bearing).
Precision ball screws in all axes: X + Z 25 mm x 10, Y 25 mm x 25.
Repeatability up to +/- 0.01 mm (measured on the fixed bearing side).
In the Y axis, the ball screw runs centrally beneath the table and is thus protected against contamination.
The respective machining table is bolted onto the steel frame and allows the material to overhang at the front and rear.
This milling machine series offers a direct drive by means of powerful servo motors.
When machining polystyrene, the chips can be extracted through a hollow cutter using special hollow milling spindles.

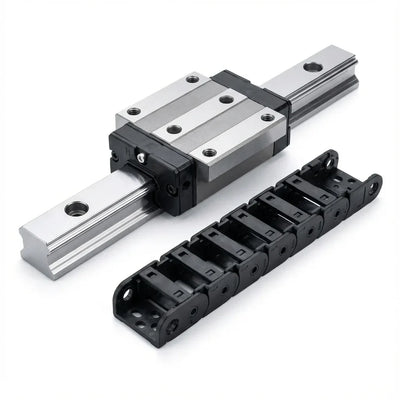

The Bosch Rexroth linear guides are installed in all axes of the gantry milling machine and, together with the ball screws, ensure precise and exact milling results.
Control & drive
Absolute servo motors (optional), no referencing of the machine required.
Freely selectable industrial CNC control from OSAI, Heidenhain or Siemens for 4- or 5-axis simultaneous machining (optional).
Intelligent electrical planning through control cabinets that are customised to customer requirements and freely configurable.
Every control cabinet is additionally available with servo motor X + Y 1 kW and Z 2 kW.
Inductive reference switches for contactless referencing.
Choose the right size
Model not listed?
Not every PFR configuration is listed online – many machines are built individually to order. Tell us your requirements (travel ranges, spindle, control) and we will put together the right machine for you.
Applications & Materials
Applications and Materials:
During milling, some materials require cooling.

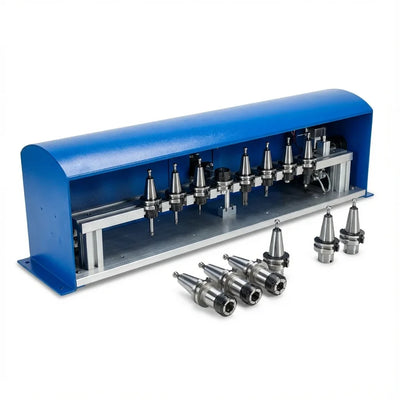

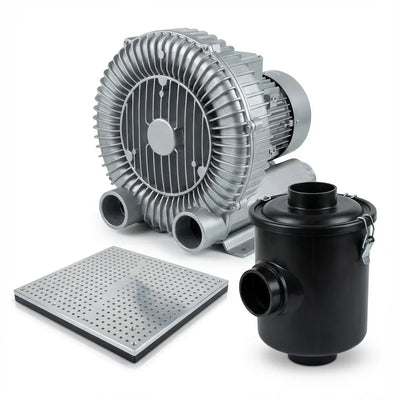

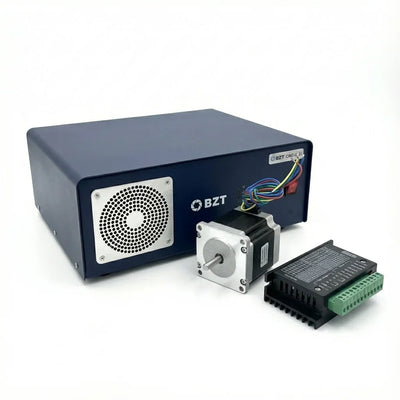

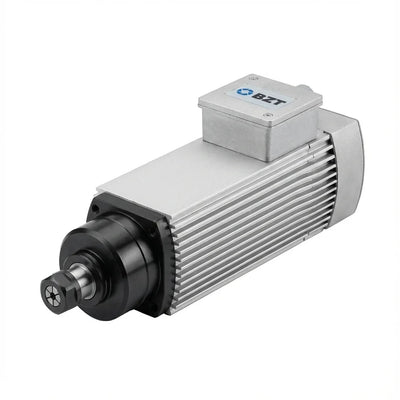

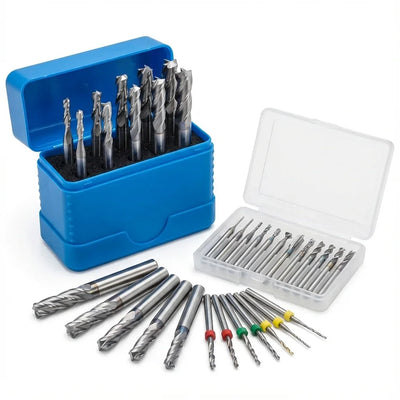

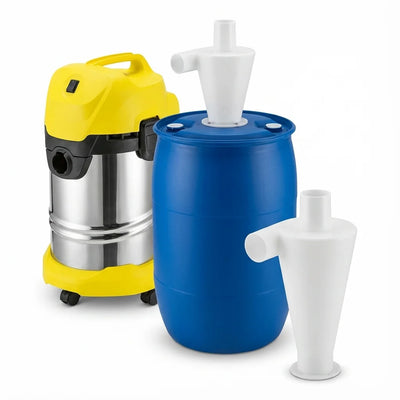

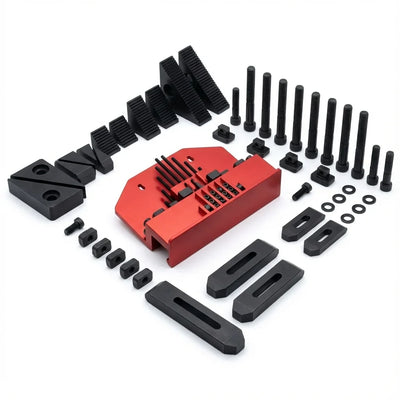

Expand your PFR
Good to know about the PFR series
Which materials can the BZT PFR machine?
What accuracy does the PFR series achieve?
How fast does the PFR series work?
Where is the PFR series manufactured?
How can I request a quote for the PFR?
Consultation on the PFR series
We help you choose the right size and configuration — spindle, control, table type and options. You will receive an individual quote.
What is the BZT PFR series?
Dynamic concept with fixed gantry (X/Z) and moving table (Y) – designed for large 3D objects, prototypes and polystyrene applications. The gantry milling machines of the PFR series are the ideal entry into the industrial production of large parts. They were developed specifically for milling prototypes as well as for producing channels. High-quality components from renowned manufacturers are used (including Festo, OSAI, Heidenhain, Siemens, Phoenix Contact, Sick). Bosch Rexroth linear guides in all axes as well as ball screws ensure precise results; the robust steel construction enables low-vibration operation even at higher speeds.
