BZT PFXTop performance in 3D milling and 3D engraving
The PFX series is an HSC machine for aluminum and steel in 2D, 2.5D and 3D machining.
Technical data sheet — PFX
Click page to enlarge · pinch to zoom on smartphone
Design & Details
What defines the PFX
Work area
- Clamping area X × Y
- 375 × 600 mm (500-H) | 375 × 680 mm (700) | 740 × 1000 mm (1000) | 740 × 1500 mm (1500)
- Travel X
- 350 mm (500-H) | 520 mm (700) | 857 mm (1000 + 1500)
- Travel Y
- 585 mm (500-H) | 700 mm (700) | 995 mm (1000) | 1450 mm (1500)
- Travel Z
- 210 mm (500-H) | 180 mm (700 / 1000 / 1500)
- Clearance height Z
- 250 mm
- Table scope of delivery
- 20 mm T-slot plate with steel strips
Drive & mechanics
- Repeatability
- 0.025 – 0.01 mm
- Traverse speed X + Y
- STEPP 12,000 mm/min | SERVO 25,000 mm/min (HSC up to 30,000 mm/min)
- Drive
- Closed-loop stepper motor 6 A / 5 Nm or servo motor 750 W / 7.16 Nm (3 × 6 A | 3 × 700 W)
- Linear guides (Bosch Rexroth)
- 25 mm (700 / 1000 / 1500) | 500-H: X + Z 15 mm | Y 25 mm
- Ball screws (Bosch Rexroth)
- 500-H: X + Y 16 × 10 mm | Z 16 × 5 mm — 700: all axes 16 × 5 mm — 1000 + 1500: X + Y 25 × 10 mm | Z 16 × 5 mm
General
- Weight
- 700 kg (500-H) | 600 kg (700) | 800 kg (1000) | 1000 kg (1500)
- Step size
- 0.0025 mm
- Outer dimensions L × W × H
- 1600 × 1000 × 2100 mm (500-H) | 1400 × 1260 × 2100 mm (700) | 1900 × 1000 × 2100 mm (1000) | 3500 × 1550 × 2100 mm (1500)
- Reference switch
- yes
- Power supply
- 230 V / 50 Hz | 380 V / 50 Hz
- Max. power
- 12 kW
- Category
- Industrial
- Special feature
- HSC machine (High Speed Cutting), fixed gantry
Design

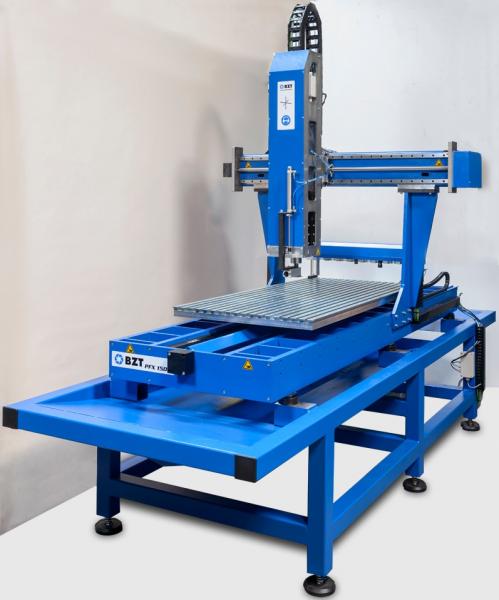

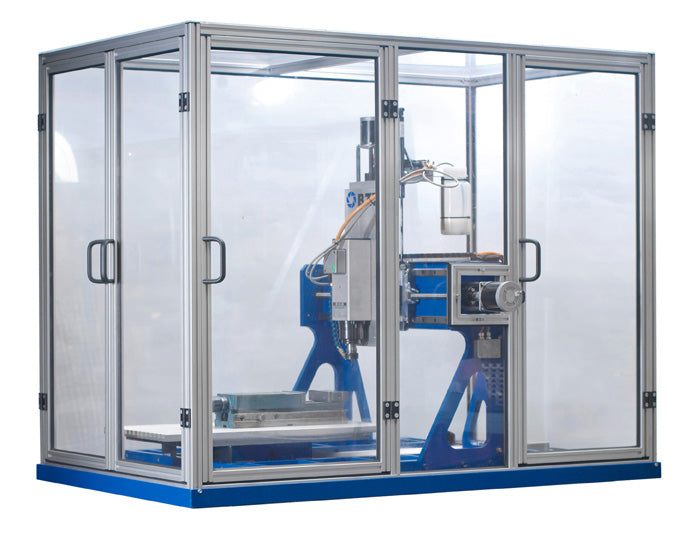

Robust, solid steel construction — extremely low-vibration and stable for precise milling results.

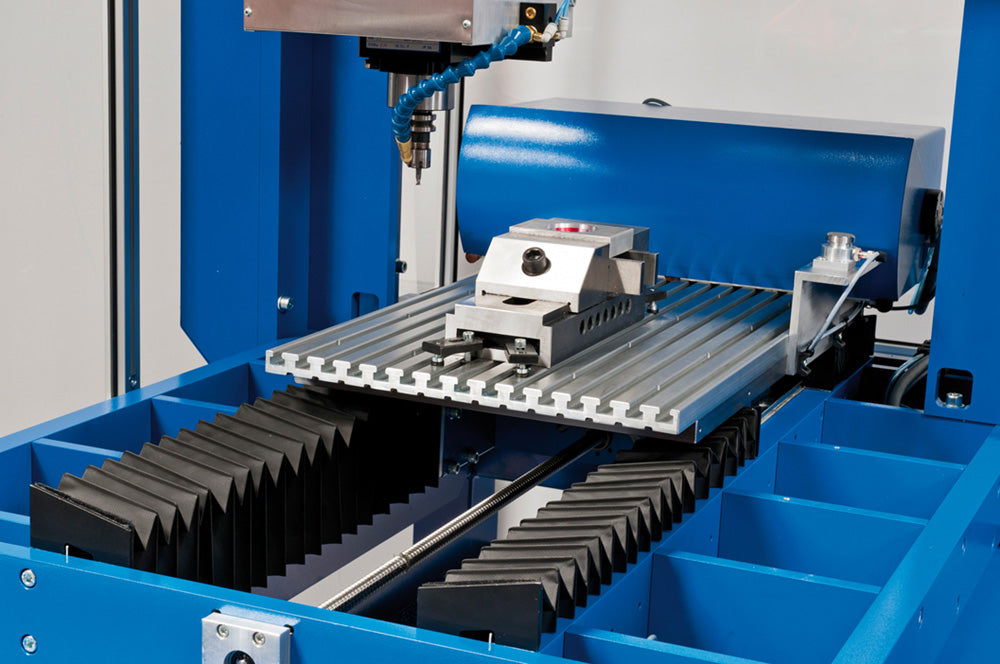

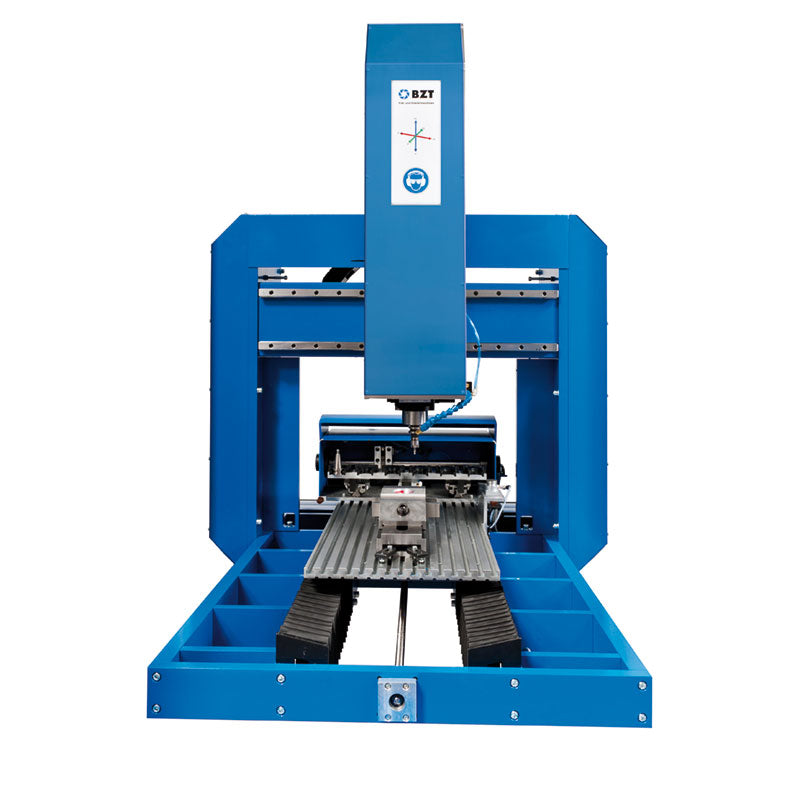

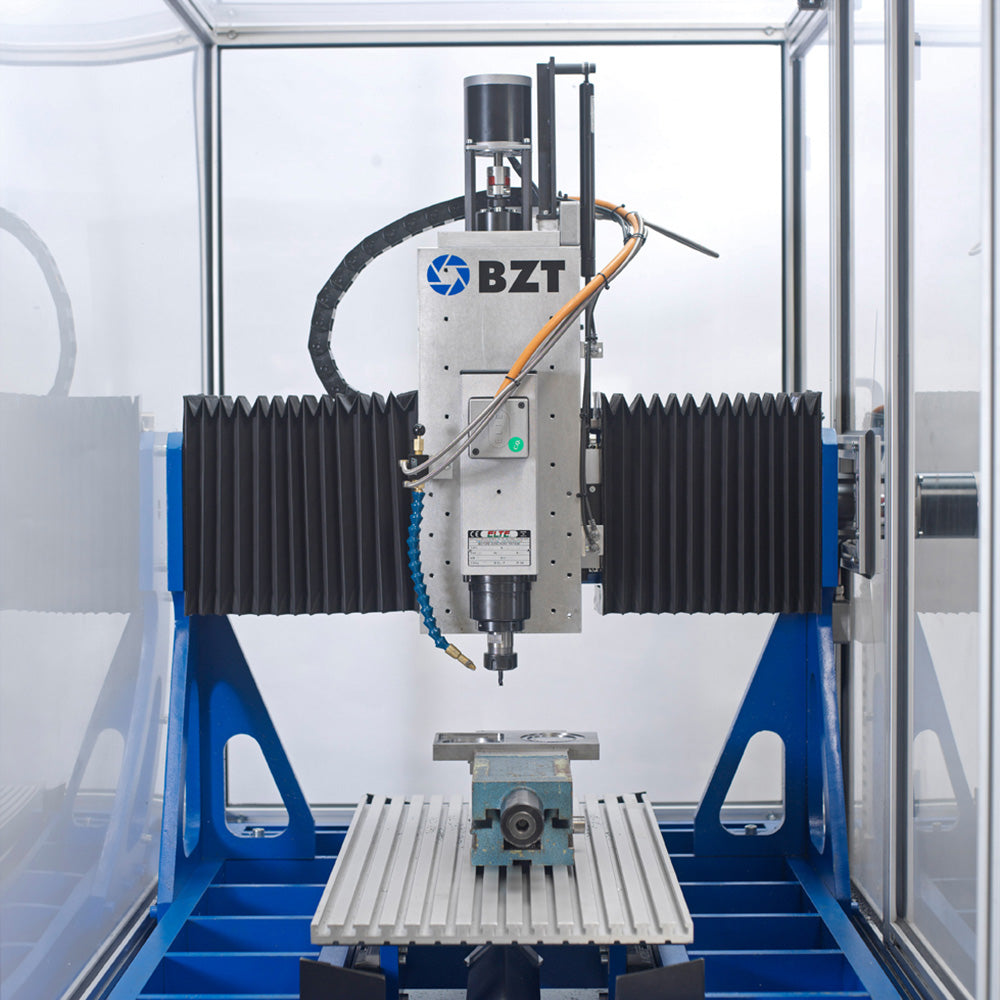

Fixed gantry: only the table moves as the Y axis, so no large masses have to be moved.
Linear guides with guide carriages and ball screws from Bosch Rexroth on all axes.
Clamping area X × Y from 375 × 600 mm (500-H) to 740 × 1500 mm (1500).
Travels up to X 857 mm | Y 1450 mm | Z 210 mm, clearance height Z 250 mm.

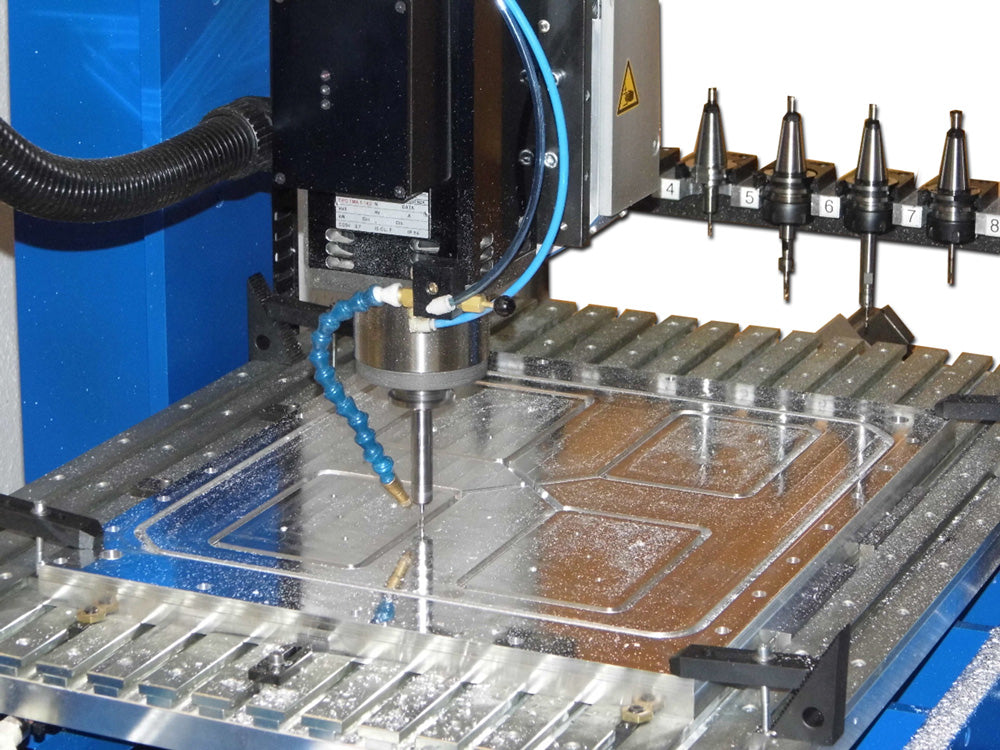

The driven nut in the Y axis ensures even better milling results.
Supplied with 20 mm T-slot plate with steel strips.

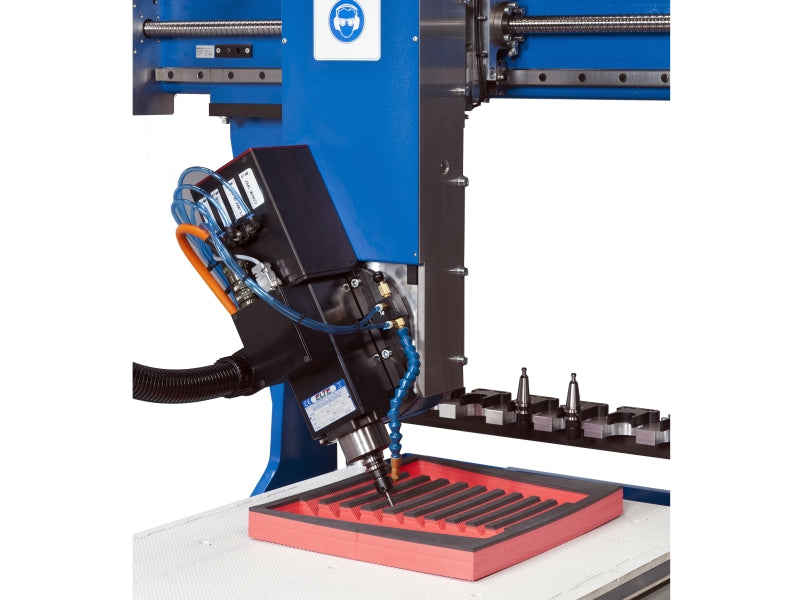

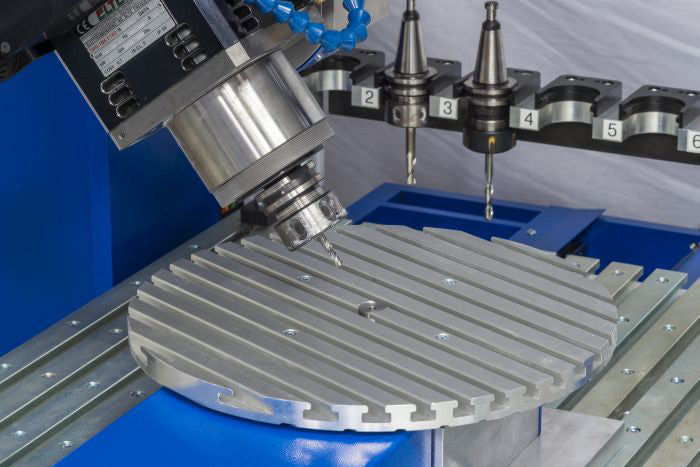

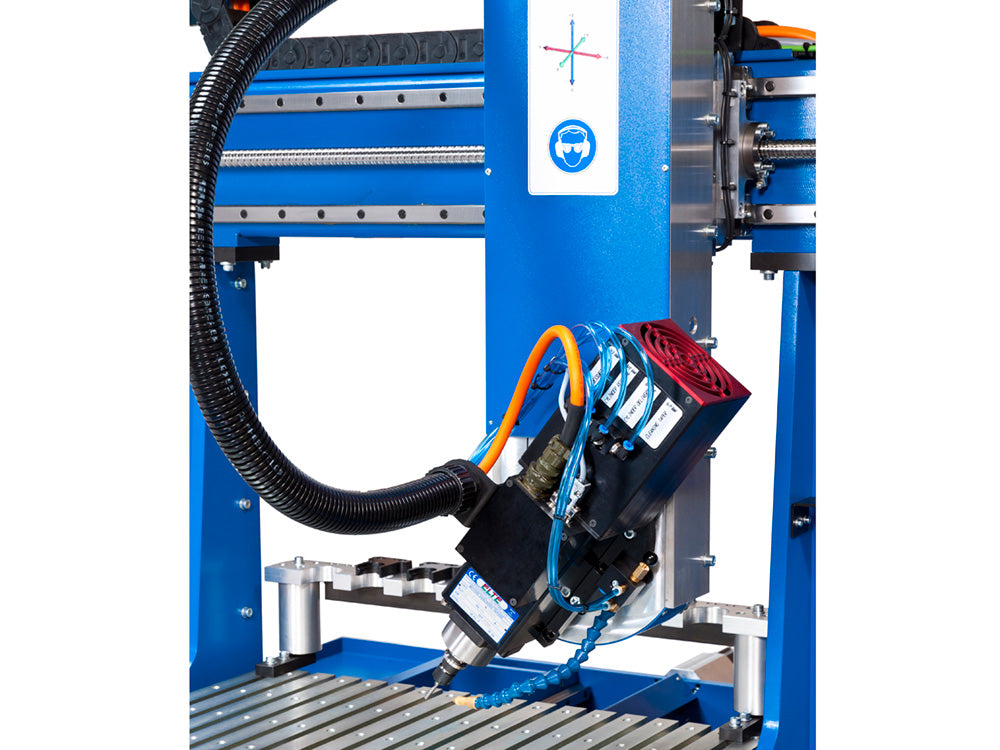

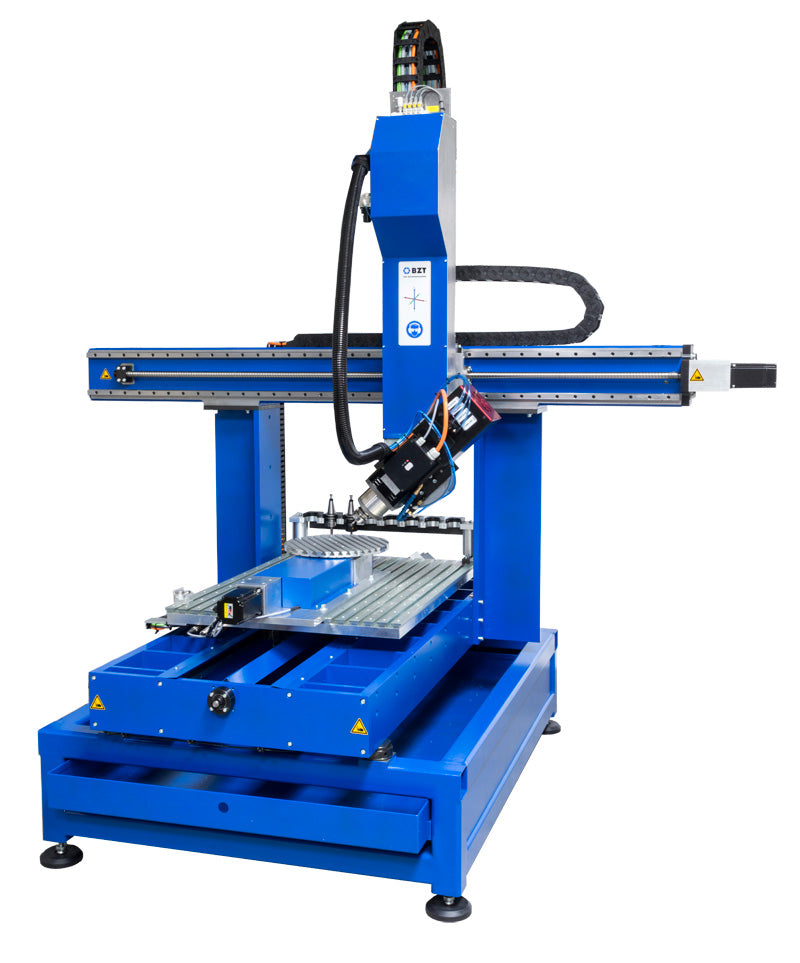

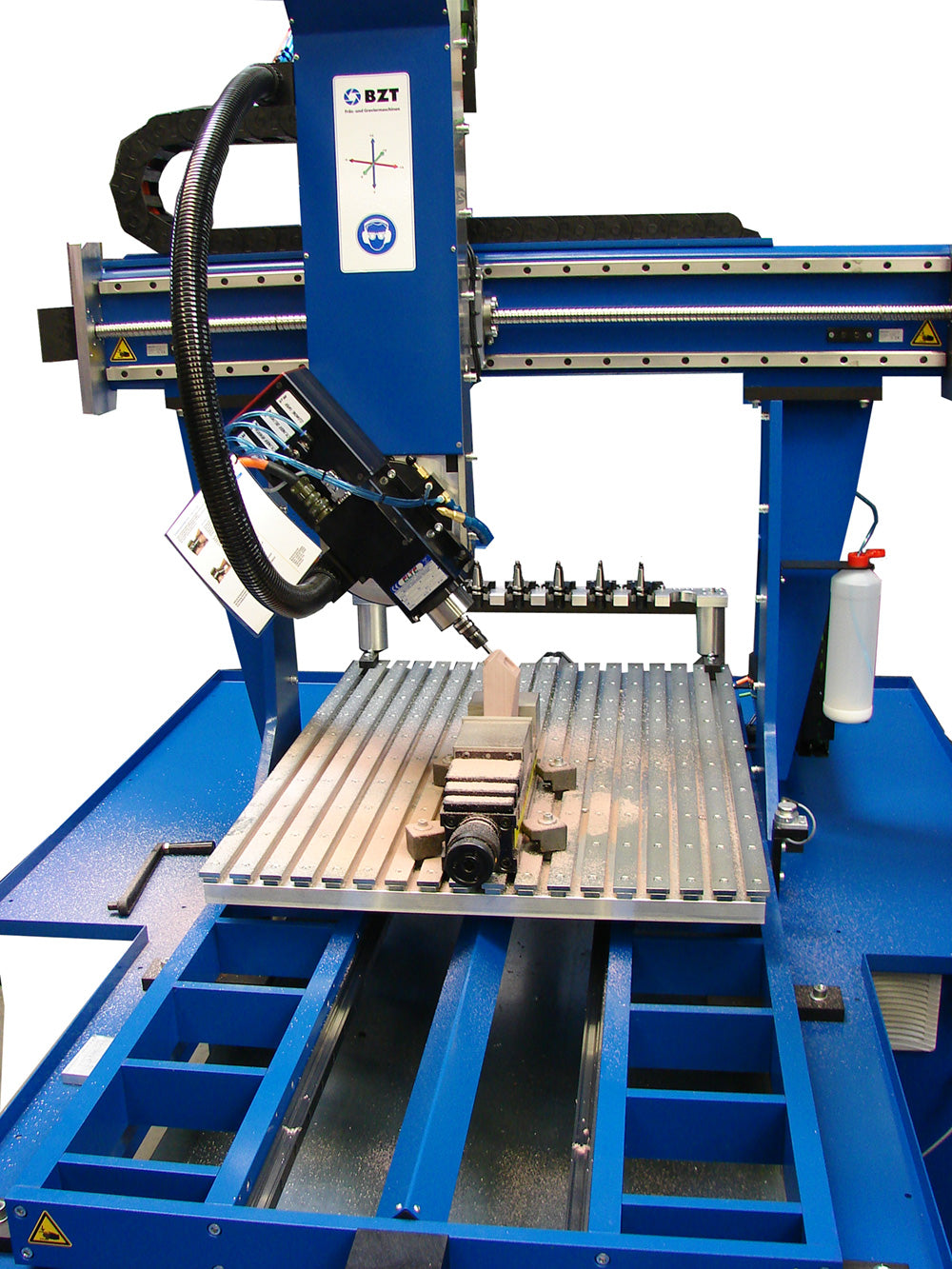

Optional: vacuum table and swivel head for 5-axis machining.
Control & drive
High Speed Cutting (HSC): with servo technology, traverse speeds up to 30,000 mm/min are possible (rapid traverse approx. 12,000 mm/min).
Drive options: closed-loop stepper motor 6 A / 5 Nm or servo motor 750 W / 7.16 Nm.
Max. power 12 kW.

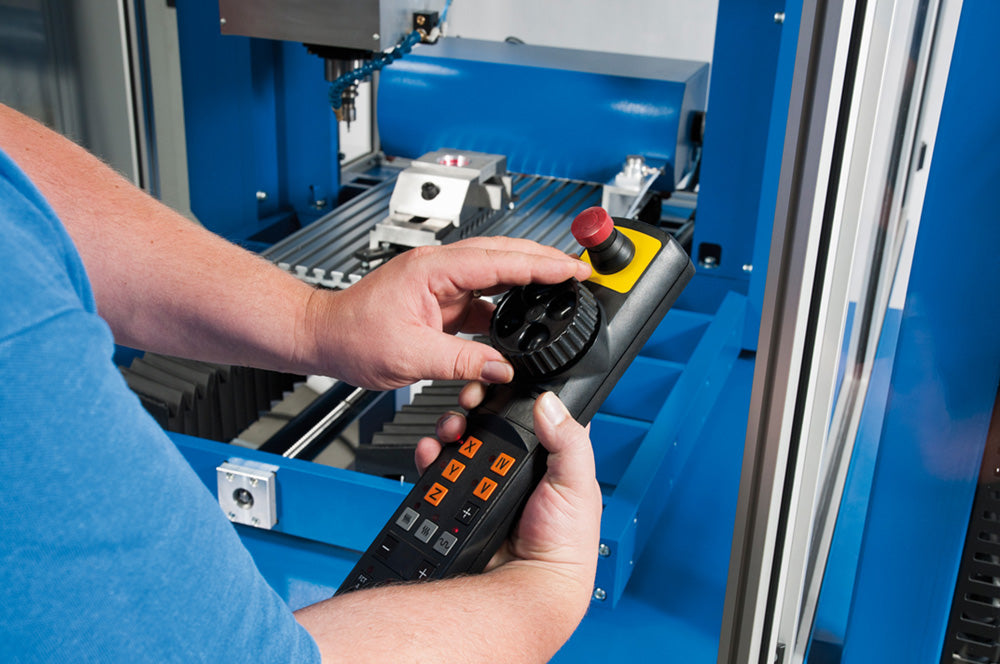

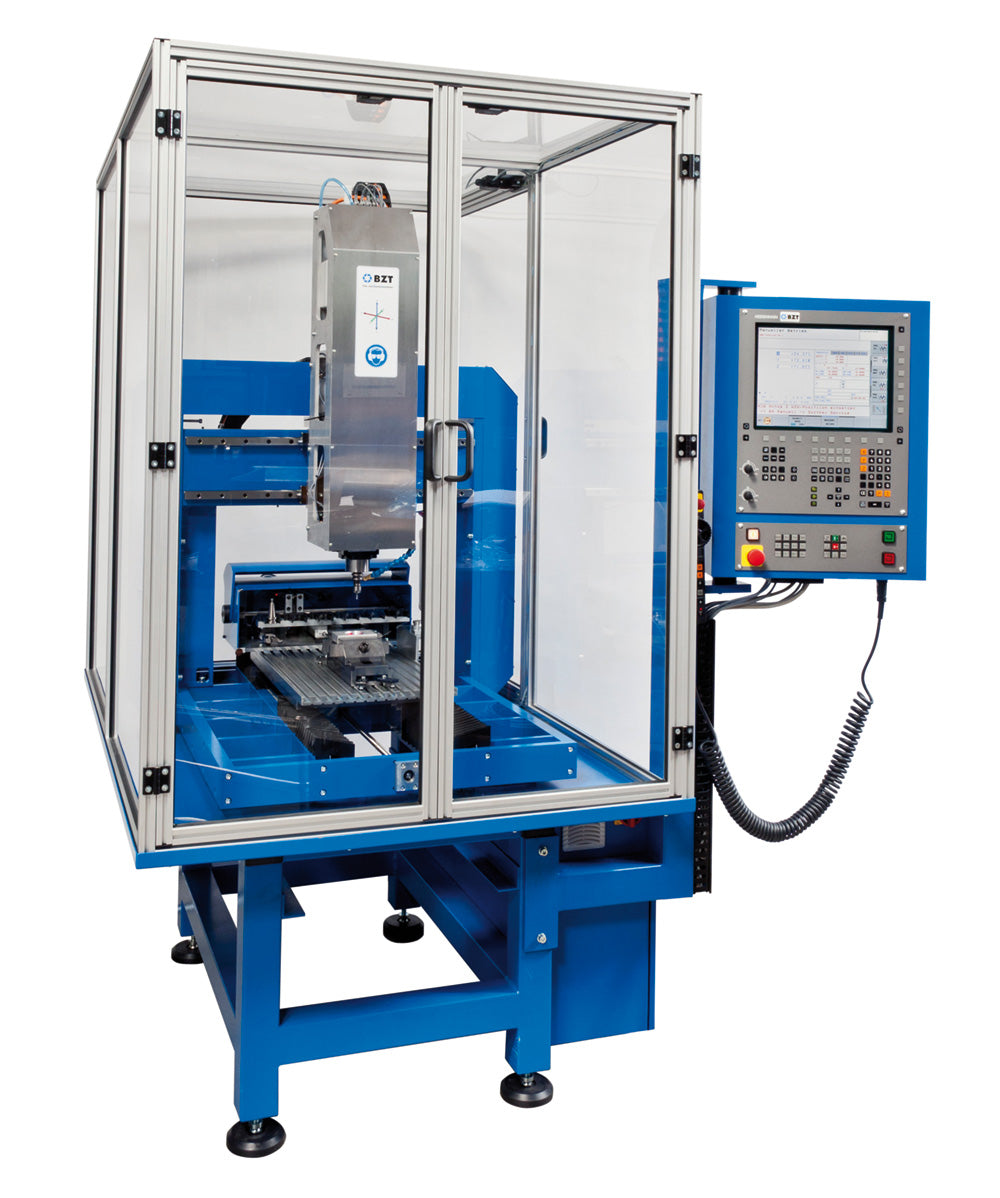

Control optional: Siemens control or Heidenhain control, handwheel optional.
Power supply 230 V / 50 Hz or 380 V / 50 Hz.
Reference switch as standard.
Choose the right size
Model not listed?
Not every PFX configuration is listed online – many machines are built individually to order. Tell us your requirements (travel ranges, spindle, control) and we will put together the right machine for you.
Applications & Materials
Applications and Materials:
During milling, some materials require cooling.
Expand your PFX
Good to know about the PFX series
Which materials can the BZT PFX machine?
What accuracy does the PFX series achieve?
How fast does the PFX series work?
Where is the PFX series manufactured?
How can I request a quote for the PFX?
Consultation on the PFX series
We help you choose the right size and configuration — spindle, control, table type and options. You will receive an individual quote.
What is the BZT PFX series?
High Speed Cutting, fixed gantry and high-quality Bosch Rexroth components – optimised for 2D, 2.5D and 3D machining. The PFX series has been specially optimised for 2D, 2.5D and 3D material machining. As a high-performance HSC machine (High Speed Cutting), it is designed for fast and precise machining of aluminium and steel (limited). The fixed gantry integrates the X and Z axes; the table moves as the Y axis. This means fewer masses are moved – the machine works particularly dynamically. Linear guides with guide carriages and ball screws from Bosch Rexroth are used on all axes.
