HF Spindle 1.5 vs. 2.2 vs. 5 kW: Which Power You Really Need

The HF spindle is the heart of every CNC gantry milling machine. It decides how clean your cut edge looks, how fast you can machine and how long your tools last. A wrong choice of power is expensive: if you buy too large, you pay for reserves that are never used. If you buy too small, you ruin your cut quality and wear out your tools unnecessarily quickly.

In this article we show you when a 1.5 kW HF spindle is sufficient, why 2.2 kW is the most common workshop choice and from when 5 kW really pays off. You will find a comparison table of all common power classes, clear recommendations by material and an overview of which spindle suits which BZT gantry milling machine.

What is an HF spindle? Design and function

An HF spindle (high-frequency spindle) is an electrically driven milling spindle head that is supplied with high-frequency three-phase current via a frequency inverter. Unlike classic three-phase motors, HF spindles typically reach spindle speeds of 12,000 to 24,000 rpm, and up to 60,000 rpm in special versions. These high spindle speeds are necessary in order to machine economically with the small tool diameters that are common today.

The main components of an HF spindle are:

• Asynchronous motor: Controlled via the inverter with variable frequency. The spindle speed is regulated linearly via the frequency.
• Ceramic ball bearings (hybrid bearings): Steel rings with ceramic balls. Higher speed capability, lower thermal expansion and longer service life than pure steel bearings.
• Tool holder: Usually ER collets (ER11, ER20, ER25, ER32), HSK or ISO holders on industrial spindles.
• Cooling system: Water-cooled (closed circuit) or air-cooled (built-in fan).

In the BZT spindle range you will find quality HF spindles from ELTE and Unitec/Hiteco with power ratings from 0.8 to over 11 kW. The following sections clarify which of them suits your application.

Cooling: Water-Cooled vs. Air-Cooled

The type of cooling has a direct influence on noise level, continuous-load capability and maintenance effort. Both variants have their merits.

Water-cooled HF spindles

• Pro: Very quiet operation, high continuous load possible, precise temperature control, longer bearing life
• Pro: Constant spindle temperature ensures consistent dimensional accuracy
• Contra: Additional pump, cooling-water reservoir and hoses required
• Contra: Risk of frost in a cold workshop, regular coolant change

Air-cooled HF spindles

• Pro: Simple design, no water circuit needed, ready for use immediately
• Pro: Lower maintenance in everyday use, no frost problem
• Contra: Louder noise level due to the integrated fan
• Contra: Lower continuous-load capability, can be thermally limited during intensive machining

Rule of thumb: if you machine for several hours a day or work on aluminium and steel, choose water cooling. If you mill wood and plastic for a few hours a week, air cooling serves you well. You will find matching cooling accessories under Lubrication and Cooling.

Power Classes Compared

The following table gives you a quick overview of the most common HF spindle power classes and their typical areas of use.

Note on prices: HF spindles are equipped very differently from a technical point of view (branded manufacturers such as ELTE and Hiteco cost more than no-name imports). The ranges given are for rough orientation only. You can get a specific recommendation tailored to your application through the BZT consultation.

1.5 kW HF Spindle: For Wood and Light Materials

A 1.5 kW HF spindle is the classic entry into the world of CNC milling. It is sufficient for all applications in which you mainly machine wood, wood-based materials, MDF, plywood, acrylic, PVC and similar plastics.

Typical tasks for which 1.5 kW is enough:

• Wooden signs, lettering, furniture parts
• Acrylic letters and illuminated advertising signs
• Engravings in hardwood and softwood
• Foam models, packaging prototypes
• Thin aluminium sheet up to approx. 2 mm (with an adapted strategy)

A 1.5 kW spindle is usually available air-cooled, which makes the set-up simple and low-cost. It typically suits compact BZT machines such as the PF series or the somewhat larger PFA. For occasional aluminium machining, however, you should choose conservative feed rates and infeeds, otherwise the spindle will quickly reach its limits.

2.2 kW HF Spindle: The Workshop All-Rounder

The 2.2 kW HF spindle is by far the best-selling power class in the hobby and semi-professional sector. The reason: it combines reasonable power reserves for aluminium with moderate costs and simple infrastructure.

With 2.2 kW you can handle the following applications cleanly:

• All wood and plastic applications without compromise
• Aluminium machining up to approx. 10 mm depth with 6–8 mm end mills
• Brass and other soft non-ferrous metals
• Carbon fibre sheets (with diamond-coated tools)
• Industrial-grade engravings in aluminium signs

This power class is usually water-cooled and uses ER20 or ER25 collets. It is the typical choice for the PFE series and smaller PFU models. For a workshop that runs a mix of wood, plastic and occasionally aluminium, 2.2 kW is almost always the right choice.

5 kW HF Spindle: For Aluminium Series Production and Steel

From 5 kW you enter industrial territory. These spindles are mostly water-cooled, often have an HSK or ISO tool holder and cost significantly more than their smaller siblings. In return, they deliver the reserves you need for serious metalworking.

When do you really need 5 kW or more?

• You produce aluminium parts in series with short cycle times
• You machine aluminium with tool diameters of 12 mm and above
• You machine steel, stainless steel or titanium
• You run HSC machining with high feed rates
• You work eight hours a day or more under full load

For a pure hobby workshop, a 5 kW spindle is oversized and expensive. For an industrial production plant with aluminium or steel components, on the other hand, it is the economical choice, because the investment pays for itself through shorter machining times and longer tool life. This power class suits the industrial series in the BZT Series Comparison: PFU-S, PFH, PFG-S and PFX.

Tool Holder: ER Collet, HSK or ISO?

The tool holder determines how quickly and how precisely you can change tools. It therefore has a direct influence on the cost-effectiveness of your production.

ER collet (ER11, ER16, ER20, ER25, ER32)

• Classic, universal holder for end mills
• A manual tool change takes approx. 30 seconds to 1 minute
• Collets are very inexpensive to buy
• Run-out accuracy below 0.01 mm achievable with careful mounting
• Standard on all hobby and workshop spindles

HSK holder (HSK-E25, HSK-F63 etc.)

• Hollow shank taper with flat contact, very high run-out accuracy
• Automatic tool change possible (tool magazine)
• Higher purchase costs for holders and tools
• Standard on industrial spindles from approx. 3–4 kW

ISO holder (ISO 30, ISO 40)

• Steep taper holder, very robust
• Large tool diameter possible
• Typical for heavy machining in steel
• More expensive to buy, but extremely durable

For most BZT customers working with wood, plastic and aluminium, an ER25 collet is the most economical choice. If you want to change tools automatically in series production, you cannot avoid HSK. You will find matching tools, collets and holders in CNC Accessories.

Common Mistakes When Choosing a Spindle

When buying a spindle, we at BZT see the same mistakes again and again. If you know these four pitfalls, you save yourself costly lessons learned the hard way.

• Oversized spindle: A 5 kW spindle for a hobby workshop in which only wood is milled. The spindle is more expensive to buy, louder, heavier and needs a larger machine to support the torque in a usable way. More power does not automatically mean a better result.
• Undersized spindle: A 1.5 kW spindle that is regularly used to machine aluminium. The spindle overheats, the bearings wear faster, tools break more easily and the cut quality suffers. What you save on the spindle, you spend again on tools and repairs.
• Wrong cooling for the application: An air-cooled spindle under load in continuous operation leads to overheating. Conversely, a water-cooled spindle without antifreeze in an unheated hobby room in winter is a sure route to expensive damage.

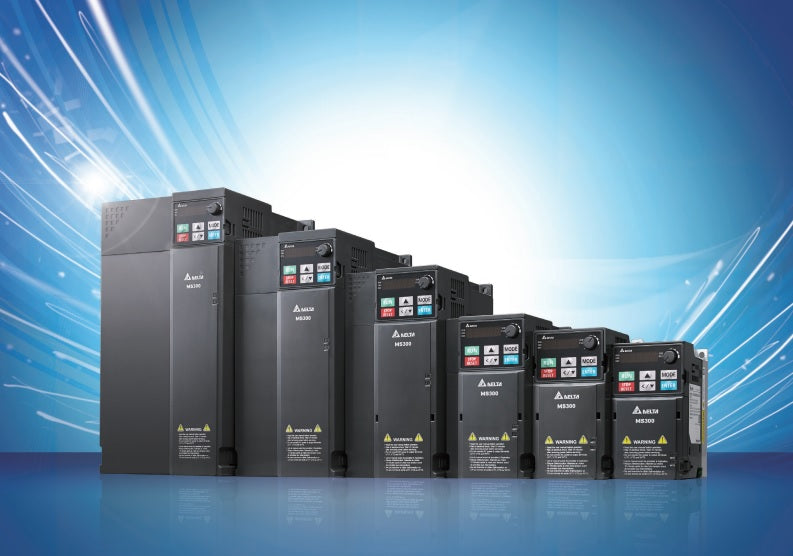

• Neglecting the frequency inverter: The spindle is only as good as its inverter. An inverter that is undersized and cheap does not reliably reach the rated speed, controls unevenly and ages quickly. Make sure you have a matching set of spindle and inverter from a reputable supplier.

Which spindle suits which BZT machine?

To give you a quick orientation, here is our recommendation for each BZT series. If you are unsure which spindle is the best choice for your application, our technical consultation will be happy to help you further.

We configure every BZT machine with the right spindle for your application. You will find the common models directly in the HF spindle overview, combined with the matching CNC controller in the Spindles and Motors section.

Frequently Asked Questions

Is a 1.5 kW spindle enough for aluminium?

For occasional engraving in thin aluminium, yes; for serious aluminium machining, no. With 1.5 kW you can machine sheet up to approx. 2 mm thick with small end mills (3–4 mm) if you choose conservative feed rates. For aluminium parts with tool diameters from 6 mm and depths of cut from 3 mm, you should plan on at least 2.2 kW, better 3.5 kW.

What happens if the spindle is overloaded?

An HF spindle has no classic overload protection like a three-phase motor. If you work above the rated power, the spindle temperature rises, the bearings wear faster and, in extreme cases, the spindle speed drops below the setpoint, which ruins the cut quality and can break tools. The frequency inverter eventually switches off under sustained overload, but the bearing damage remains. It is better to machine conservatively and use the spindle for the long term.

How loud is an HF spindle?

Water-cooled HF spindles are surprisingly quiet when idling, often below 60 dB(A), which is roughly conversation level. Air-cooled spindles typically reach 65–75 dB(A) because of the fan. Usually louder than the spindle itself is the machining process: the sound of the milling cutter in the material and the dust extraction dominate in the workshop. A suitable extraction system with cyclone separator helps to keep the overall noise level low.

How long does an HF spindle last?

A properly sized and well-maintained HF spindle typically lasts 8000 to 15,000 operating hours in normal workshop use before a bearing replacement is due. Water-cooled spindles with branded components reach 20,000 hours or more with good maintenance. What matters: never run the spindle without cooling, avoid overload, check the bearing preload regularly and keep chips out of the tool holder.

Can I retrofit the HF spindle on my BZT machine?

Yes, in the vast majority of cases a spindle upgrade is possible. BZT gantry milling machines are designed so that the spindle mount is standardised and spindles of different diameters and power classes can be fitted. It is important that the frequency inverter matches the new spindle and that the Z axis can take the additional load and length. Which options come into question for your machine is clarified by our BZT consultation with reference to your serial number.

Which spindle speed do I need for wood and which for aluminium?

Rule of thumb: wood likes high spindle speeds (18,000–24,000 rpm with small tools), aluminium needs moderate spindle speeds (12,000–18,000 rpm) and steel works best at low spindle speeds (3000–8000 rpm). What matters is the cutting speed of the tool (Vc in m/min) and the tool diameter. Too high a spindle speed in aluminium leads to built-up edges and a poor surface, while too low a spindle speed in wood burns the material. Tool manufacturers publish cutting data tables that fit the respective geometry.

Conclusion: the right spindle makes the difference

The power of your HF spindle is one of the most important decisions when buying a CNC machine. If you assess honestly which materials are really machined, you avoid both an oversized and an undersized spindle. For most workshops, a 2.2 kW water-cooled spindle is the economical sweet spot. If you only mill wood, 1.5 kW is enough. If you machine aluminium in series or steel, you should plan for at least 5 kW.

At BZT, we configure every machine individually with the right spindle: no blanket packages, but a solution matched to your application. Talk to us: our technicians will advise you free of charge and without sales pressure on the right spindle combination for your BZT gantry milling machine. Direct contact for advice: BZT Contact.
