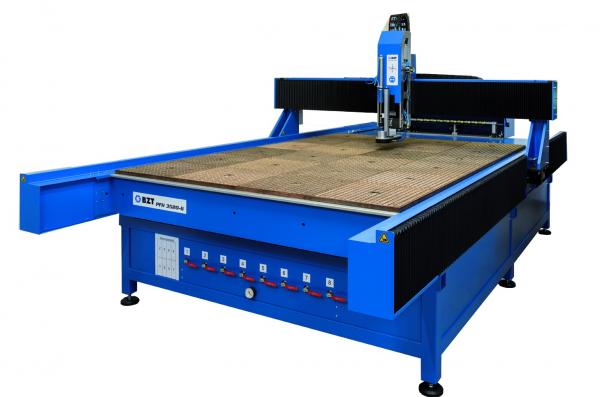

BZT PFH 3020-G
For diverse industrial CNC milling operations
Specifications of the BZT PFH 3020-G
Working area
- Travel X
- 2020 mm
- Travel Y
- 3010 mm
- Travel Z
- 170 mm
- Clamping surface X
- 2000 mm
- Clamping surface Y
- 3000 mm
- Clearance height Z
- 250 mm
Drive & mechanics
- Drive
- Servomotor 750 W / 7.16 Nm (optional)
- Rapid traverse
- X+Y 12000 mm/min, Z 10000 mm/min
- Repeatability
- 0.02–0.03 mm (gemessen auf der Festlagerseite)
- Ball screw X
- 16 x 16 mm
- Ball screw Y
- 25 x 10 mm
- Ball screw Z
- 16 x 5 mm
- Linear guide
- Bosch Rexroth 25 mm in X | Y | Z
General
- Power supply
- 330 V / 50 Hz
- Outer dimensions
- 3500 x 2700 x 2300 mm
- Weight
- approx. 1950 kg
Data sheet — BZT PFH 3020-G
Click page to enlarge · pinch to zoom on smartphone
The data sheet shows all model variants of the PFH series. The exact values for this machine can be found in the table above.
Why the PFH series stands out
Design & mechanics
Ball screws, linear guides and guide carriages from Bosch Rexroth.
Steel side panels in C design; concealed guides protect sensitive components from contamination.
Driven nut in the X and Y axis ensures high precision and smooth running when machining panel material.
2 ball screws Ø 25 mm in the Y axis (gantry design) with ball screw support.
Stable X axis made of steel beam 200 x 100 mm with double side panels allows the use of HF spindles up to 15 kW.
Large, stable Z axis, suitable for HF spindles up to 15 kW.
Ergonomic design: the feet are positioned on the inside; particularly suitable for panel machining.
Control & drive
CNC controller optionally from OSAI, Heidenhain or Siemens.
Servo drive 750 W / 7.16 Nm optionally available.
Optional automatic tool changer, up to 2x 8-position or 2x 16-position disc changer on the gantry.
Options: vacuum table, T-slot plate (15 or 20 mm), rotary axis/swivel head for 5-axis machining.
Applications & Materials
The Highest Precision with the BZT PFH 3020-G
The BZT PFH 3020-G is your solution for precise and reliable machining. With its robust construction and modern technology, it offers the stability you need for demanding CNC applications. Whether for wood, plastics or metal, this machine handles every challenge with ease.
Highlights & Benefits
- Stable steel X axis for use with HF spindles of up to 15 kW.
- Gantry design in the Y axis ensures the highest precision and smooth running.
- Concealed side guides protect sensitive components from dirt.
- Driven nut in the X and Y axes for optimised motion dynamics.
- Quality Bosch components for long-lasting performance.
Technical Specifications
| Feature | Details |
|---|---|
| X axis | Stable steel construction |
| Y axis | Gantry design |
| Spindle | HF spindles up to 15 kW |
| Guides | Ball screws, linear guides from Bosch |
| Side guides | Concealed, to protect the components |
| Driven nut | X and Y axes |
The BZT PFH 3020-G offers “Made in Germany” quality for precise CNC machining.
