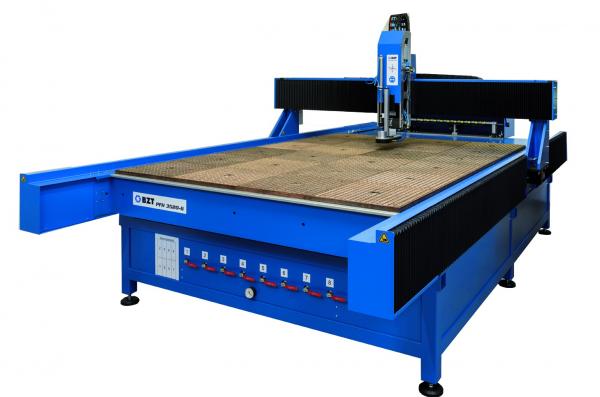

BZT PFH 2510-G
For diverse industrial CNC milling operations
Specifications of the BZT PFH 2510-G
Working area
- Travel X
- 1020 mm
- Travel Y
- 2510 mm
- Travel Z
- 170 mm
- Clamping surface X
- 1000 mm
- Clamping surface Y
- 2500 mm
- Clearance height Z
- 250 mm
Drive & mechanics
- Drive
- Servomotor 750 W / 7.16 Nm (optional)
- Rapid traverse
- X+Y 12000 mm/min, Z 10000 mm/min
- Repeatability
- 0.02–0.03 mm (gemessen auf der Festlagerseite)
- Ball screw X
- 16 x 16 mm
- Ball screw Y
- 25 x 10 mm
- Ball screw Z
- 16 x 5 mm
- Linear guide
- Bosch Rexroth 25 mm in X | Y | Z
General
- Power supply
- 330 V / 50 Hz
- Outer dimensions
- 3000 x 1700 x 2300 mm
Data sheet — BZT PFH 2510-G
Click page to enlarge · pinch to zoom on smartphone
The data sheet shows all model variants of the PFH series. The exact values for this machine can be found in the table above.
Why the PFH series stands out
Design & mechanics
Ball screws, linear guides and guide carriages from Bosch Rexroth.
Steel side panels in C design; concealed guides protect sensitive components from contamination.
Driven nut in the X and Y axis ensures high precision and smooth running when machining panel material.
2 ball screws Ø 25 mm in the Y axis (gantry design) with ball screw support.
Stable X axis made of steel beam 200 x 100 mm with double side panels allows the use of HF spindles up to 15 kW.
Large, stable Z axis, suitable for HF spindles up to 15 kW.
Ergonomic design: the feet are positioned on the inside; particularly suitable for panel machining.
Control & drive
CNC controller optionally from OSAI, Heidenhain or Siemens.
Servo drive 750 W / 7.16 Nm optionally available.
Optional automatic tool changer, up to 2x 8-position or 2x 16-position disc changer on the gantry.
Options: vacuum table, T-slot plate (15 or 20 mm), rotary axis/swivel head for 5-axis machining.
Applications & Materials
The BZT PFH 2510-G: Your Solution for Precise CNC Machining
The BZT PFH 2510-G is a CNC milling machine for anyone who needs a high level of precision and stability. Thanks to its robust construction and powerful HF spindles, it is well suited to machining a wide variety of materials. Say goodbye to inaccurate results and get the benefits of excellent technology from Germany.
Highlights & Benefits
- Stable steel X axis for reliable performance
- Gantry design in the Y axis ensures high precision
- Driven nut in the X and Y axes for optimal smooth running
- Concealed side guides protect against contamination
- Quality components from Bosch guarantee durability
Technical Specifications
| Feature | Details |
|---|---|
| Max. spindle power | 15 kW |
| Axes | X, Y, Z |
| Guides | Ball screws, linear guides |
| Design | C-construction |
| Protection | Concealed side guides |
Choose the BZT PFH 2510-G and get German engineering and excellent quality that optimises your production processes.
