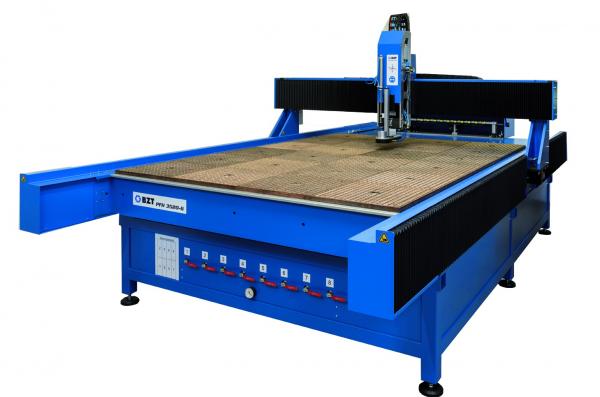

BZT PFH 2520-G
For diverse industrial CNC milling operations
Specifications of the BZT PFH 2520-G
Working area
- Travel X
- 2020 mm
- Travel Y
- 2510 mm
- Travel Z
- 170 mm
- Clamping surface X
- 2000 mm
- Clamping surface Y
- 2500 mm
- Clearance height Z
- 250 mm
Drive & mechanics
- Drive
- Servomotor 750 W / 7.16 Nm (optional)
- Rapid traverse
- X+Y 12000 mm/min, Z 10000 mm/min
- Repeatability
- 0.02–0.03 mm (gemessen auf der Festlagerseite)
- Ball screw X
- 16 x 16 mm
- Ball screw Y
- 25 x 10 mm
- Ball screw Z
- 16 x 5 mm
- Linear guide
- Bosch Rexroth 25 mm in X | Y | Z
General
- Power supply
- 330 V / 50 Hz
- Outer dimensions
- 3000 x 2700 x 2300 mm
Data sheet — BZT PFH 2520-G
Click page to enlarge · pinch to zoom on smartphone
The data sheet shows all model variants of the PFH series. The exact values for this machine can be found in the table above.
Why the PFH series stands out
Design & mechanics
Ball screws, linear guides and guide carriages from Bosch Rexroth.
Steel side panels in C design; concealed guides protect sensitive components from contamination.
Driven nut in the X and Y axis ensures high precision and smooth running when machining panel material.
2 ball screws Ø 25 mm in the Y axis (gantry design) with ball screw support.
Stable X axis made of steel beam 200 x 100 mm with double side panels allows the use of HF spindles up to 15 kW.
Large, stable Z axis, suitable for HF spindles up to 15 kW.
Ergonomic design: the feet are positioned on the inside; particularly suitable for panel machining.
Control & drive
CNC controller optionally from OSAI, Heidenhain or Siemens.
Servo drive 750 W / 7.16 Nm optionally available.
Optional automatic tool changer, up to 2x 8-position or 2x 16-position disc changer on the gantry.
Options: vacuum table, T-slot plate (15 or 20 mm), rotary axis/swivel head for 5-axis machining.
Applications & Materials
High Precision and Robustness with the BZT PFH 2520-G
The BZT PFH 2520-G is a CNC milling machine for demanding applications. Its stable construction and high-output technology guarantee precise results when machining panel material. Whether for industrial use or the trades, this machine meets high requirements for quality and efficiency.
Highlights & Benefits
- High stability thanks to the robust steel construction.
- Use of HF spindles up to 15 kW.
- Gantry design for precise and smooth machining.
- Concealed side guides protect against dirt.
- Quality Bosch components for maximum reliability.
Technical Specifications
| Feature | Details |
|---|---|
| X axis | Stable steel construction |
| Spindle power | Up to 15 kW |
| Design | Gantry design |
| Guides | Ball screws, linear guides from Bosch |
| Protection | Concealed side guides |
“Made in Germany” quality: the BZT PFH 2520-G for precise CNC machining.
